Extralink EX14473 6U 10-inch Wall Rackmount Cabinet / Gray (EX.14473)

The Extralink rack cabinet is designed for wall mounting in offices, network server rooms, and CCTV control rooms. Its external walls are made of cold-rolled steel sheet, while the front door features a tempered glass pane that can be opened to either the left or right side.
Key Features


Clearly Marked Cabinet HeightThe vertical rails include a height designation of 6U (unit). The total cabinet height is 37 cm.

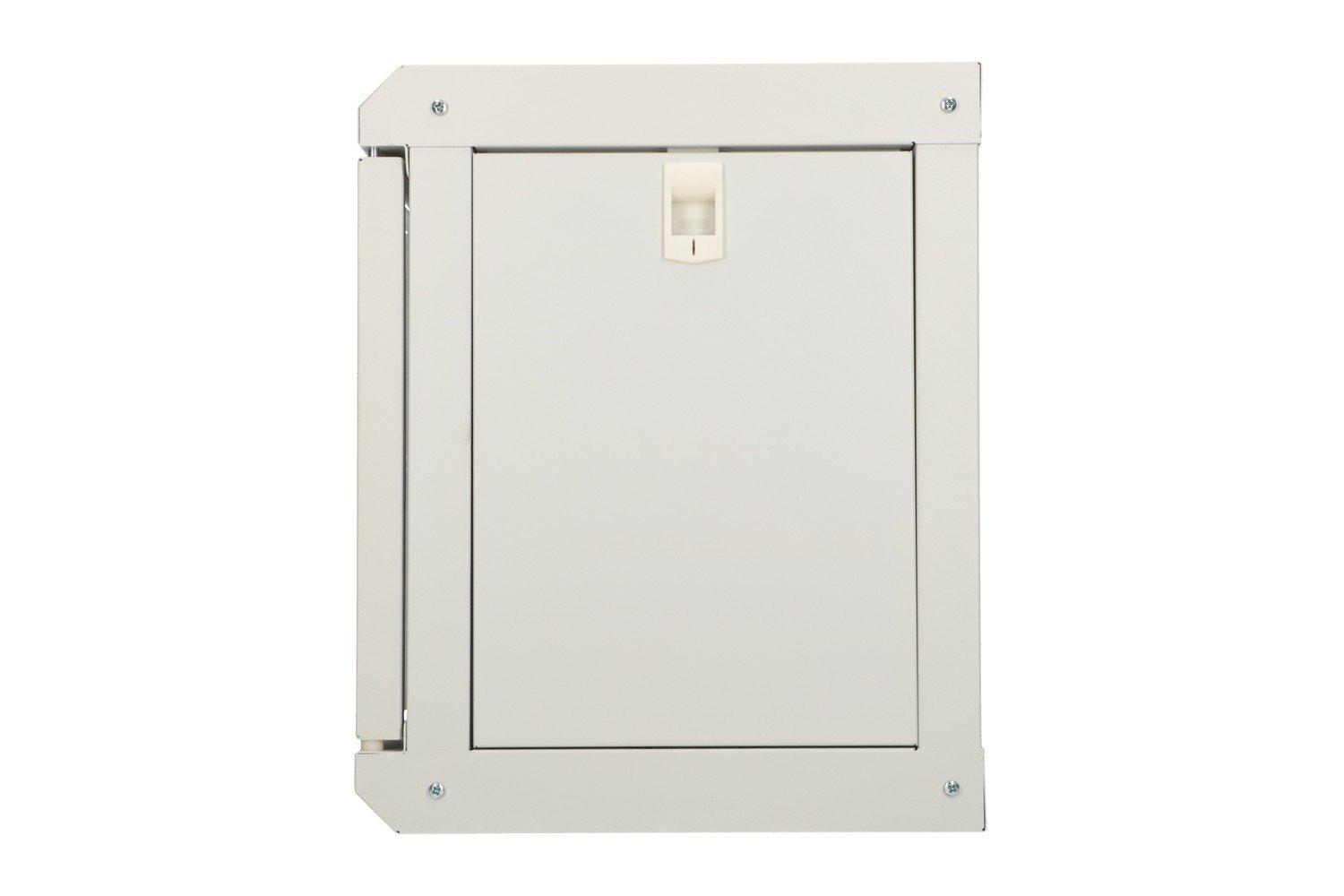

Easy Removal of Side PanelsClips on the side walls allow for quick and easy removal.


Ceiling with Fan Installation OptionThe cabinet's ceiling provides space for installing a fan to improve cooling and includes an additional conduit for cable management.


Sturdy and Functional Construction


Welded frame with a reliable design


Prepared for self-assembly, making transportation easier and reducing shipping costs


Suitable for both standing and wall-mounted installation


Easy installation with a patented system


Removable side panels for convenient access


Cable entry holes on both the top cover and bottom panel

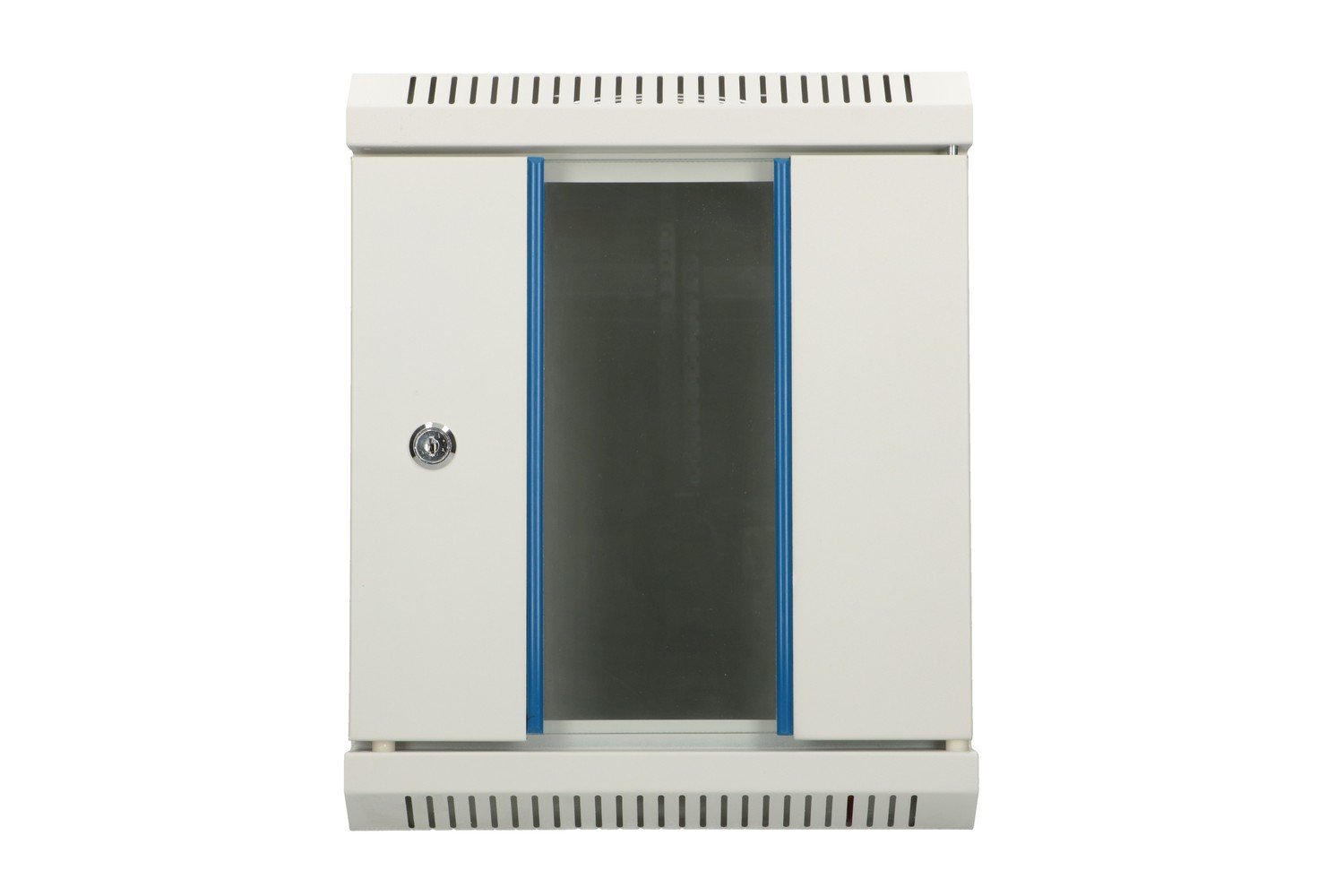

Tempered glass front door with a swivel angle exceeding 180 degrees




Specifications


Cabinet Height: 6U


Back Door: Steel, with key lock


Cable Management: Yes


Color: Grey


Cooling Type: Passive


Depth: 300 mm


Frame Type: Closed


Front Door: Glass/Steel, with key lock


Overall Height: 470 mm


Material: Steel, Tempered Glass


Maximum Weight Capacity: 60 kg


Rack Capacity: 6U


Removable Back Door: No


Removable Front Door: Yes

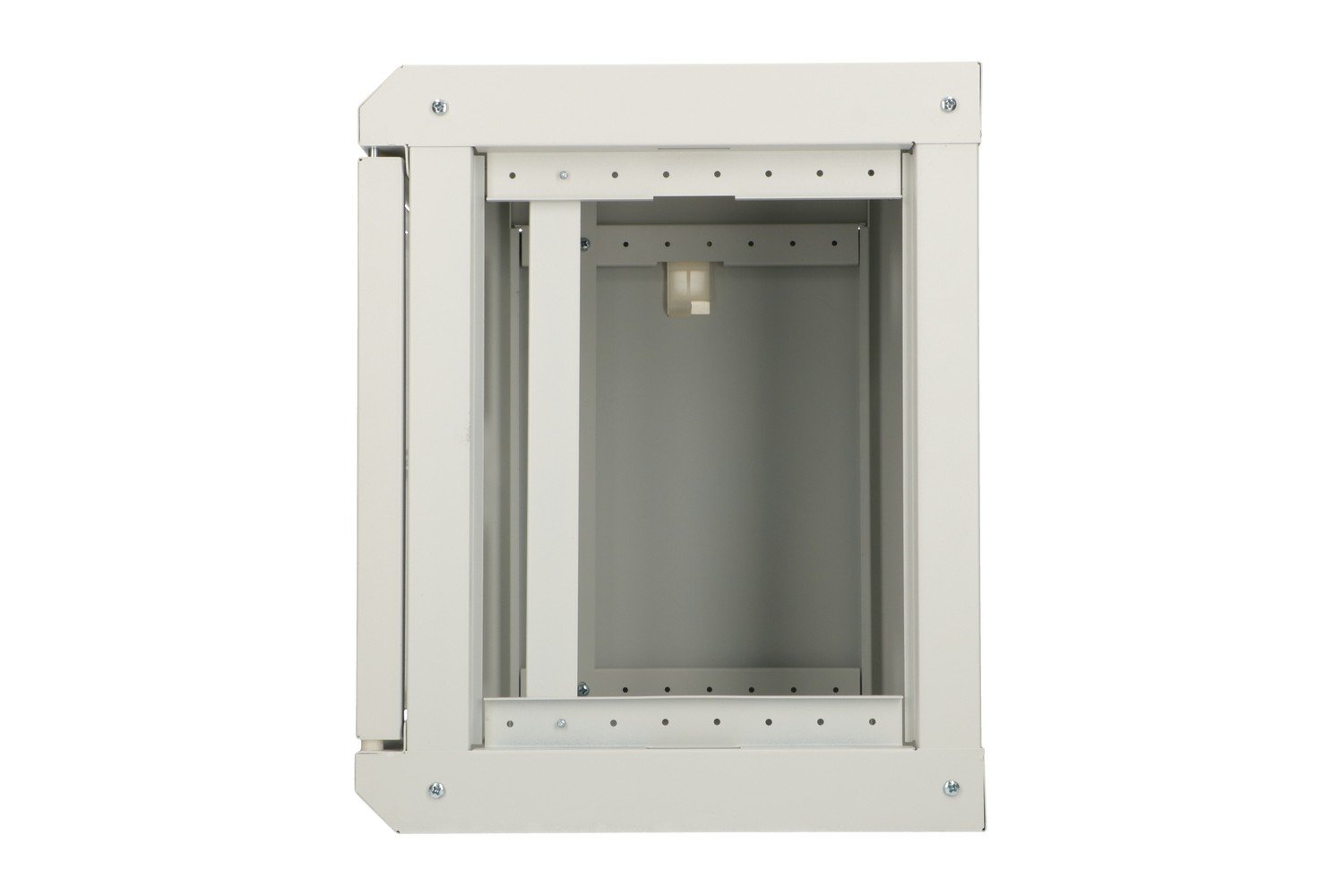

Removable Side Panels: Yes


Side Panel Construction: Steel


Side Panels Included: Yes


Size (Imperial): 25.4 inches

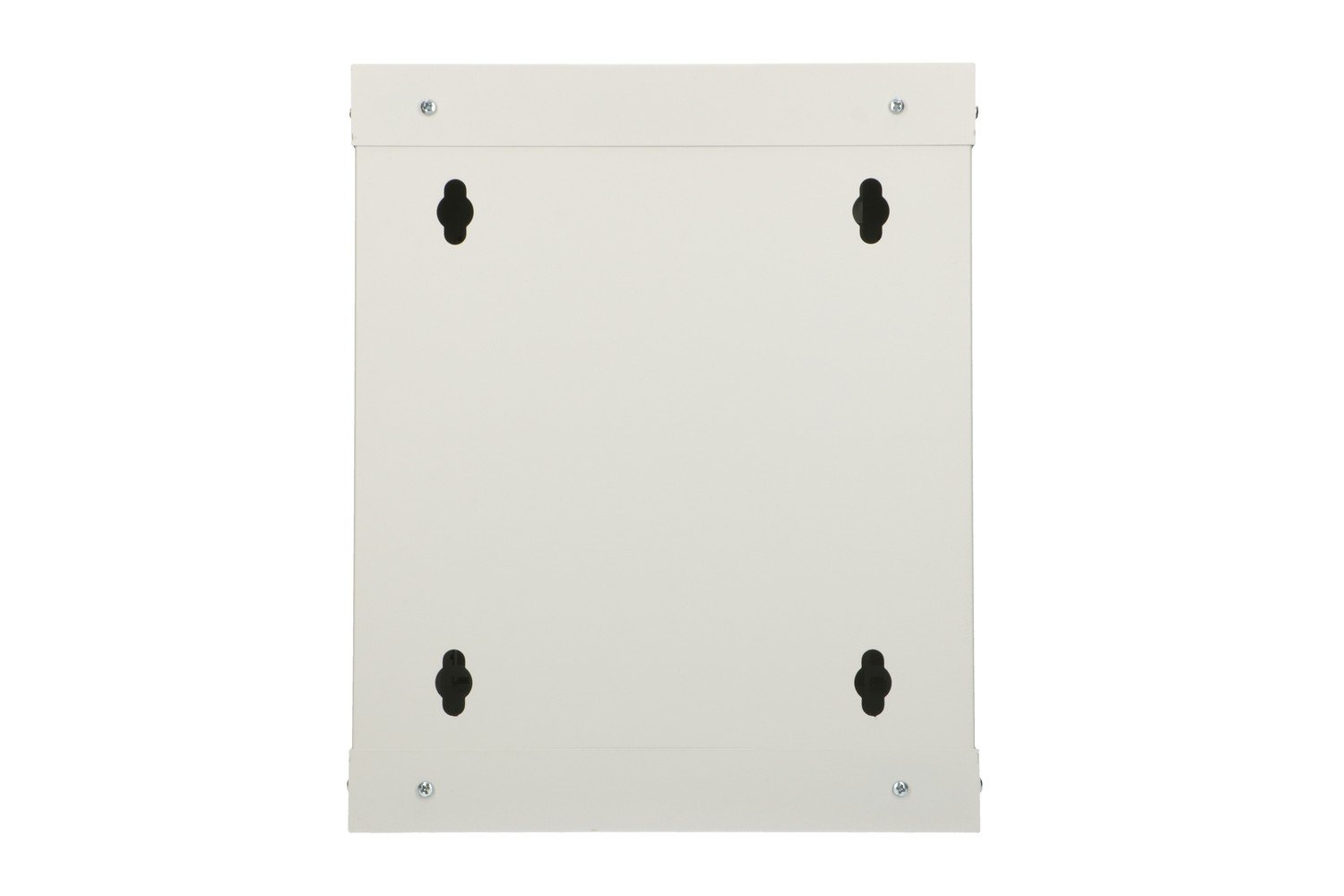

Mounting Type: Wall-mounted rack


Door Type: Glazed


Width: 300 mm
