Techly 4-port splitter 306653

Techly IDATA HDMI-4K4 HDMI Splitter, P/N: 306653 – AV Splitter HDMI 1x4, 4K*30Hz, 3D
Product Description:

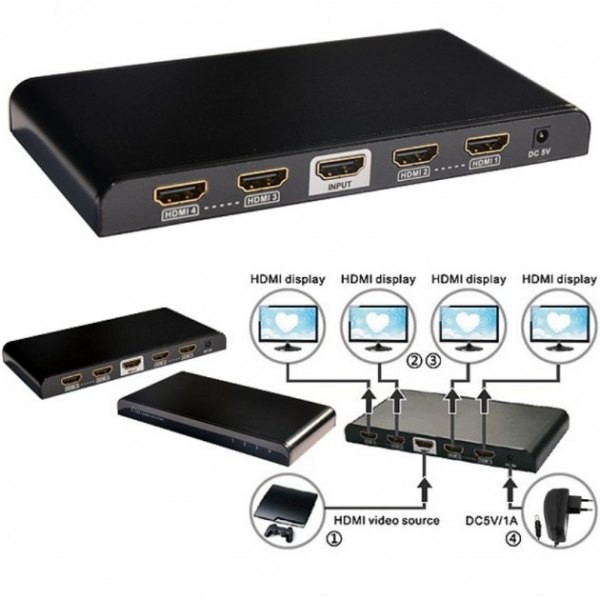

Enables connection of up to four HDMI displays to a single HDMI signal source device
Displays the same image from one HDMI signal source on four HDMI monitors or televisions
Works with any HDMI signal source such as a TV decoder, game console, AV player, and many others
Works with any HDMI display such as a monitor, television, or projector
Supports resolutions up to Ultra High Definition 3840 x 2160 @ 30Hz
Supports 3D video in Full HD 1080p resolution
Supports 24-, 30-, and 36-bit Color Depth
Supports multi-channel digital audio LPCM, Dolby-AC3, DTS 7.1, DSD / Dolby TrueHD / DTS-HD Master Audio
Allows the use of long HDMI cables, up to 30m for the input port and up to 25m for the output ports
Full HDCP 1.2 compliance ensures protection of high-resolution displayed content
HDMI Consumer Electronics Control (CEC) compliance allows the use of a single remote with compatible HDMI devices
Plug and Play connection, no specialized configuration required
Allows cascading of several HDMI splitters
3-year warranty
Technical Parameters:
Device type: HDMI splitter
Number of HDMI input ports: 1
Number of HDMI output ports: 4
Connectors:
1x HDMI 19-pin female (input signal)
4x HDMI 19-pin female (output signal)
Input / output TMDS signal: 0.5 - 1.5 p-p (TMDS)
Input / output DDC signal: 5V p-p (TTL)
Transmission range:
Up to 30m from signal source to splitter (min. 26 AWG)
Up to 25m from splitter to display (min. 26 AWG)
Supported HDMI resolutions:
480i/480p @ 60Hz
576i/576p @ 50Hz
720p @ 50/60Hz
1080i/1080p @ 50/60Hz
UHD 3840 x 2160 @ 30Hz
3D format support
Bandwidth: 10.2Gbps
HDMI signal: compliant with HDMI 1.4
HDCP signal: compliant with HDCP 1.2
CEC support
MTBF: >30000 h
Power supply: 5V DC, 1A
Power consumption:
