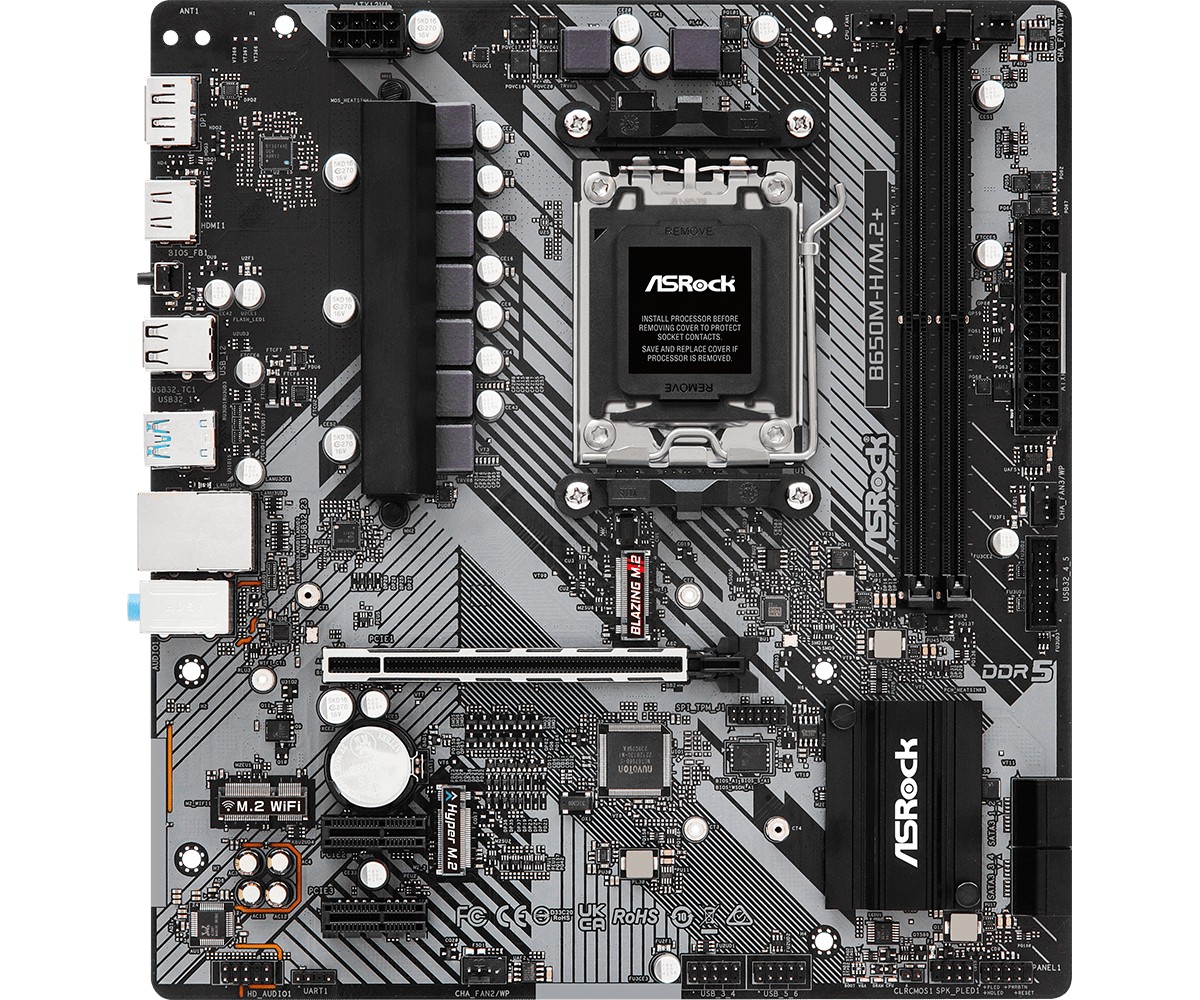

ASROCK B650M-H/M.2 + AM5 2DDR5 HDMI/DP Micro ATX (B650M-H/M.2+)
Product images are illustrative. The original product may vary, so please refer to the product specifications in the product description.
Available/On order
Price
€ 96.12The e-shop price may differ with shops price. Price valid while supplier stock lasts.
Points
+96
Delivery time and options
-
7-11 days -
7-11 days -
7-11 days -
7-11 days -
7-11 days
Warranty period 36 months
Product details
| Product code | B650M-H/M.2+ |
| EAN | 4710483943768 |
| Description | B650M-H/M.2+ Supports AMD Socket AM5 Ryzen 7000 series processors 6+1+1 power phase design, Dr.MOS, 120W CPU standby 2 x DDR5 DIMMs, support up to 6400+(OC) 1 PCIe 4.0 x16, 2 PCIe 4.0 |
| Model | B650M-H/M.2+ |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 9 |
| Processor family | AMD Ryzen 7 |
| Processor family | AMD Ryzen 5 |
| Integrated CPU | Yes |
| Chipset manufacturer | AMD |
| chipset type | AMD B650 |
| memory type | DDR5 |
| Number of DDR5 slots | 2 |
| Memory bus frequency | 6400 MHz |
| max memory size | 96 |
| expansion slots | 1 x M.2 |
| expansion slots | 1 x PCIe 4.0 x 16 |
| expansion slots | 2 x PCIe 4.0 x 1 |
| Max. number of SATA devices | 4 |
| Max. number of ATA devices | 0 |
| raid | Yes |
| Detailed data on disk/drive interfaces | PROCESSOR: 1 x Blazing M.2 slot (M2_1, M key), supports 2280 PCIe Gen5x4 mode (128Gb/s)* 1 x Hyper M.2 slot (M2_2, M key), supports 2260/2280 PCIe Gen4x4 mode (64Gb/s)* Chipset: 4 SATA3 connectors |
| Type of integrated graphics card | Integrated AMD RDNA 2 graphics (Actual support may vary by processor) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120 Hz 1 x DisplayPort 1.4 with DSC (compressed |
| Sound card | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| Network interface | 1 x 10/100/1000 Mbit/s |
| Network interface | Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H |
| USB ports at back panel | 6 |
| USB ports on motherboard | 6 |
| Number of USB 3.0 ports | 6 |
| Number of USB 3.1 ports | 0 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |
| External connectors | 1 x DisplayPort |
| External connectors | 1 x HDMI |
| External connectors | 1 x Line In |
| External connectors | 1 x Line Out |
| External connectors | 1 x MIC |
| External connectors | 1 x RJ-45 |
| External connectors | 2 x USB 2.0 |
| External connectors | 3 x USB 3.0 |
| External connectors | 1 x USB 3.1 Type-C |
| External connectors | 2 x SMA |
| External connectors | 1 x USB BIOS Flashback button |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 3 x 4pin Chassis/Water Pump Fan Connectors |
| Onboard connectors | 1 x 8pin 12V power |
| Onboard connectors | 1 x 24pin ATX power supply |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x USB 3.0 header |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x Front panel audio header |
| Special functions | |
| bios | 256Mb AMI UEFI Legal BIOS with GUI support |
| form factor | ATX |
| dimensions | 24.4 x 22.6 cm |
| Accessories included | User manual I/O cover 2 x SATA data cables 3 x M.2 screws |
| Supported operating systems | Windows 10 |
| Supported operating systems | Windows 11 |
| software | Software ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI ASRock Full HD UEFI ASRock automatic driver installer ASRock Instant Flash |
| Other information | Certyfikaty FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
