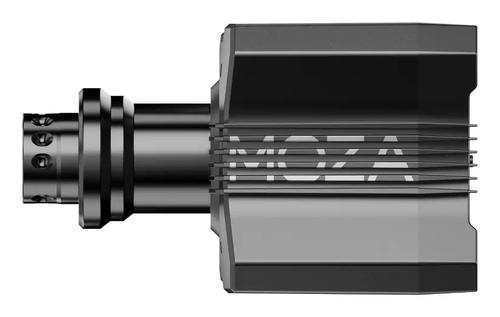

Moza Racing R9 V3 Racing Wheel Base, Black (MOZ-RS080)

The MOZA R9 is the wheelbase for serious racers. This cutting-edge product offers 9 Nm of torque from a direct-drive servo motor, ensuring unparalleled performance. Crafted with aviation-grade aluminum alloy, it combines minimum weight with maximum torque. With wireless power and communication, smart temperature control, and easy assembly, it’s a breeze to use. Experience control like never before with the MOZA Pit House Control Center and enjoy seamless operation through the APP Cloud Control.

**9 N·m of Torque from a Direct Drive Servo Motor**
The R9’s 9N·m of torque can simulate a full range of steering forces and car handling characteristics.

**21-Bit Magnetic Encoder**
**With 280MHz High-Performance Processor**
Divides each full rotation into 2,097,152 precise steps
Delivers microscopic 0.00017° resolution
Enables ultra-smooth control feel and instant response
Reproduces exceptionally detailed force feedback

**High Torque Density**
Optimized slot-fill copper windings
High-permeability silicon steel core
NdFeB permanent magnets for maximum output

**18-Slot/16-Pole Configuration**
Multi-slot/pole design minimizes torque ripple
Enhanced damping for smoother feedback
Delivers precise and detailed steering response

**Wide Torque Range**
Low back-EMF design
Maintains consistent torque at high RPM
Eliminates abrupt torque drop-off

**Smart Temperature Control System**
Our advanced system continuously monitors the temperature of the motor and electronic components and employs intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.

**Aviation Grade Aluminum Alloy Housing**
Unmatched quality and durability. The MOZA R9’s whole housing is made of aviation grade aluminum alloy.

**Industrial Conductive Slip Ring**
The base and the steering wheel are connected through an automotive-grade conductive slip ring with a lifespan of over 5 million revolutions.
The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.

**APP Cloud Control**
The settings of the wheelbase, steering wheel, pedals, etc. can be modified through the MOZA APP. Settings can be imported with one click onto new simulators.

**Compact Design**
The integrated motor design results in a compact size that still retains a standard 4-hole bottom mount pattern. It can be easily installed onto the vast majority of dedicated rigs and floorstands. In smaller spaces, the base can be assembled with a desktop clamp, saving space while providing a convenient and enjoyable driving experience anytime, anywhere. Moza Racing R9 V3. Product type: Racing wheel base, Product colour: Black, Material: Aluminium. Width: 157 mm, Depth: 240 mm, Height: 124 mm. Cables included: Power, USB. Input voltage: 110 - 220 V, Peak power: 180 W
