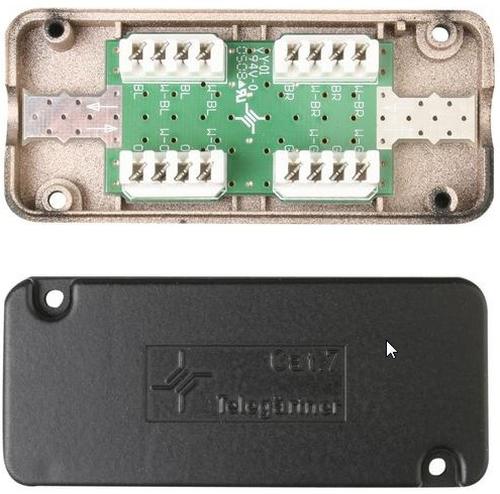

Telegärtner J00060A0069 võrguseadmete laiendaja

The VM 8-8 modules are employed as connections/extensions of commercially available, shielded/unshielded twisted-pair installation cables (Cat. 5e/Cat. 6/Cat. 7) in the following applications: damaged cables, cable extensions, cable rerouting.

When VM 8-8 modules are used, the cable segments in a structured wiring system do not need to be laid out again. This reduces the expenses for alterations and the overall costs to a minimum. Depending on the connection module type, up to 12 incoming and 12 outgoing 8-wire cables can be permanently connected together without any significant reduction in the transmission characteristics or limitation of the maximum link lengths.

Performance Characteristics

- Connection via LSA Plus terminals on a common PCB.
- Colour coding in acc. with EIA/TIA 568A and B.
- Connection of 4-pair shielded/unshielded installation cables from AWG 24-22.
- Pairs can be brought directly up to the terminal without untwisting the pairs.
- Secure shielded contact using screw-on terminals directly on the PCB.
- Variable cable feeds.
- Separate cable strain relief using commercially available cable ties.
- Tool-free installation of shielding cover made of stainless steel (19" and on-wall mounted version).
- Surface mount (AP) type: incoming and outgoing cables in the same direction.
- Surface mount, 19", and basic (for loose connection) version: incoming and outgoing cables offset by 180degrees.
- Ground connection option directly on the PCB (M4 screw).
- EMC compatible in accordance with EN 50081-2 and 50082-2.Telegärtner J00060A0069
