PLANET IGS-614HPT võrgulüliti Haljatud Gigabit Ethernet (10/100/1000) Toiteülekanne Etherneti kaudu (PoE) Sinine

Cost-effective Full PoE+ Power Solution Ideal for Hardened Environment

Featuring Plug and Play designed to be installed in heavy industrial demanding environments, the IGS-614HPT is a PLANET Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch with four 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+, one extra 10/100/1000BASE-T RJ45 copper and one 100/1000BASE-X fiber optic interface for uplink connection.

The IGS-614HPT is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP40 metal housing.

Convenient and Reliable Power System

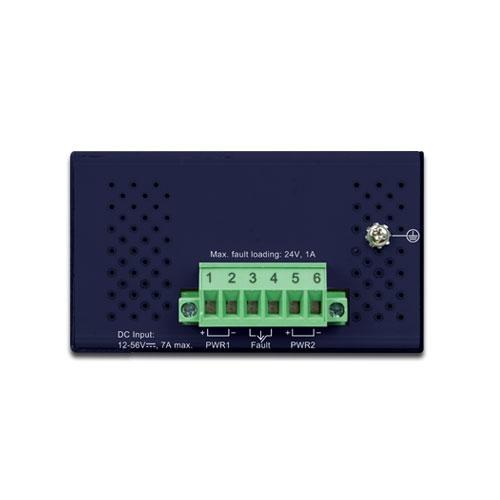

To facilitate the 802.3at PoE+ usage with commonly used 12~48V DC power input for transportation and industrial-level applications, the IGS-614HPT adopts 12~48V DC to 54V power boost technology to solve power source issue but does not require special power supplies. The IGS-614HPT provides an integrated power solution with a wide range of voltages (12~48V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 12~56V DC power supply inputs for high availability applications.

Fiber Optic Link Capability for Flexible Distance Extension

The additional mini-GBIC slot built in the IGS-614HPT supports SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications to uplink to backbone switch and monitoring center in long distance.

Environmentally Hardened Design

With the IP40 metal industrial case, the IGS-614HPT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-614HPT can be placed in almost any difficult environment.

Robust Protection

The IGS-614HPT provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Intelligent LED Indicator for Real-time PoE Usage

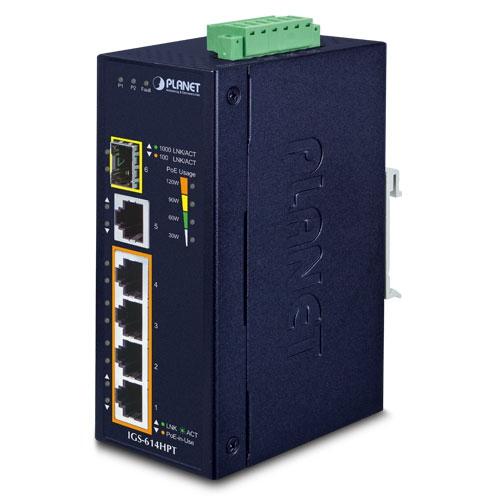

The IGS-614HPT helps users to monitor current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the Industrial Gigabit PoE+ Switch has four orange LEDs indicating 30W, 60W, 90W and 120W of PoE power usage.

Flexible and Easy Installation with Limited Space

The compact sized IGS-614HPT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexibly and easily in any space-limited location.PLANET IGS-614HPT. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... DC input voltage: 12 - 56 V. Power over Ethernet (PoE). Wall mountable
