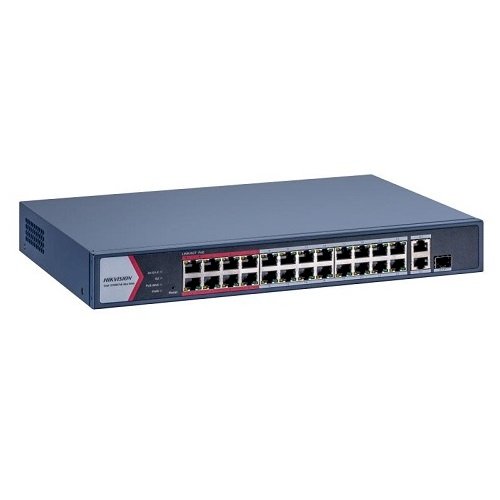

Hikvision PoE lüliti DS-3E1326P-EI/M (3E1326PEIM)

24 Port Fast Ethernet Smart POE Switch Model • DS-3E1326P-EI/M Features • 24 × 10/100M PoE ports, 1 × Gigabit combo, 1 × Gigabit RJ45 port • Total PoE Power Budget 230 W • Support 802.1Q VLAN • Support PoE watchdog to detect and restart the cameras that do not respond • Support STP/RSTP Loop prevention • Support cable detection to locate failure • Up to 300 m Long Range PoE Transmission • 6 kV Surge Protection Specifications General • Shell: Metal material • Net Weight: 2.13 kg (4.7 lb) • Gross Weight: 3.1 kg (6.8 lb) • Dimension (W x D x H): 440.00 mm x 44.00 mm x 220.80 mm (17.32'' x 1.73'' x 8.69'') • Working Temperature: 0 °C to 45 °C (32 °F to 113 °F) • Storage Temperature: -40 °C to 85 °C (-40°F to 185 °F) • Relative Humidity: 5% to 95% (no condensation) • Power Supply: 100-240 VAC, 50/60 Hz, Max. 4 A • Max. Power Consumption: 250 W • Power Consumption in Idle: 20 W • Installation Mode: Rack (equipped with mounting ears) • Surge Protection: 6 KV Network Parameters • Ports: 24 x 10/100 Mbps PoE port, 1 x Gigabit combo, 1 x Gigabit RJ45 port • MAC Address Table: 16 K • Switching Capacity: Whole-Device Performance: 14.8 Gbps; Port Performance: 8.8 Gbps • Packet Forwarding Rate: Whole-Device Performance: 11.01 Mpps; Port Performance: 6.55 Mpps • Internal Cache: 4 Mbits PoE Power Supply • PoE Standard: IEEE 802.3af; IEEE 802.3at • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) • PoE Port: Ports 1 to 24 • Max. Port Power: 30 W • PoE Power Budget: 230 W Software Function • Long Range: Ports 1 to 24: up to 300 m. Long range performance may vary depending on camera model or cable condition. • VIP Port: Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient • Port Isolation: Ports 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. • PoE Watchdog: Ports 1 to 24: auto detect and restart the cameras that do not respond. • Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. • Support static link aggregation. • Support 1 aggregation group(s). • Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. • Support 802.1D STP. • Suppport 802.1w RSTP. • VLAN: VLAN is used for network scale planning and network health improvement. • Support 802.1Q. • Configurable VLAN ID from 1-4094. • Support Trunk, Access port mode. • Support Max. 4094 VLAN. • HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported: • Display the port rate. • Display the port bandwidth utilization rate. • Display the PoE power usage. • Display topology information. • Display the alarm status. • Restart ports and devices. • Enable port long-rage mode. • Remotely upgrade the device. • System Maintenance: Support device management via web. • Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. • Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. • Support management via Hik-Central Pro. • Support remote management via Hik-Partner Pro. • Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. • Supports 802.1ab LLDP for peer device discovery. • Support port mirroring for fault locating. Approval • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015) • Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) • Chemistry: CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
