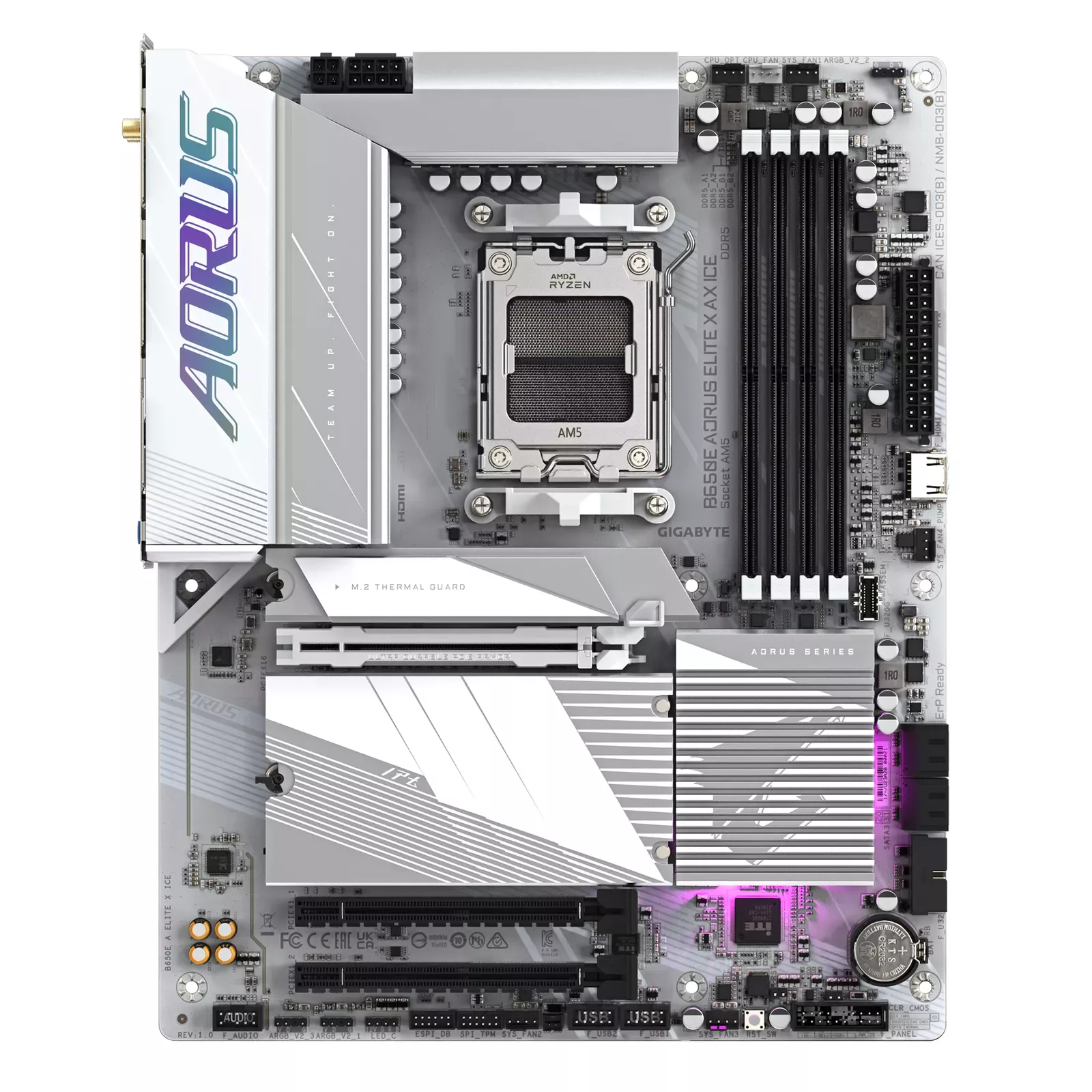

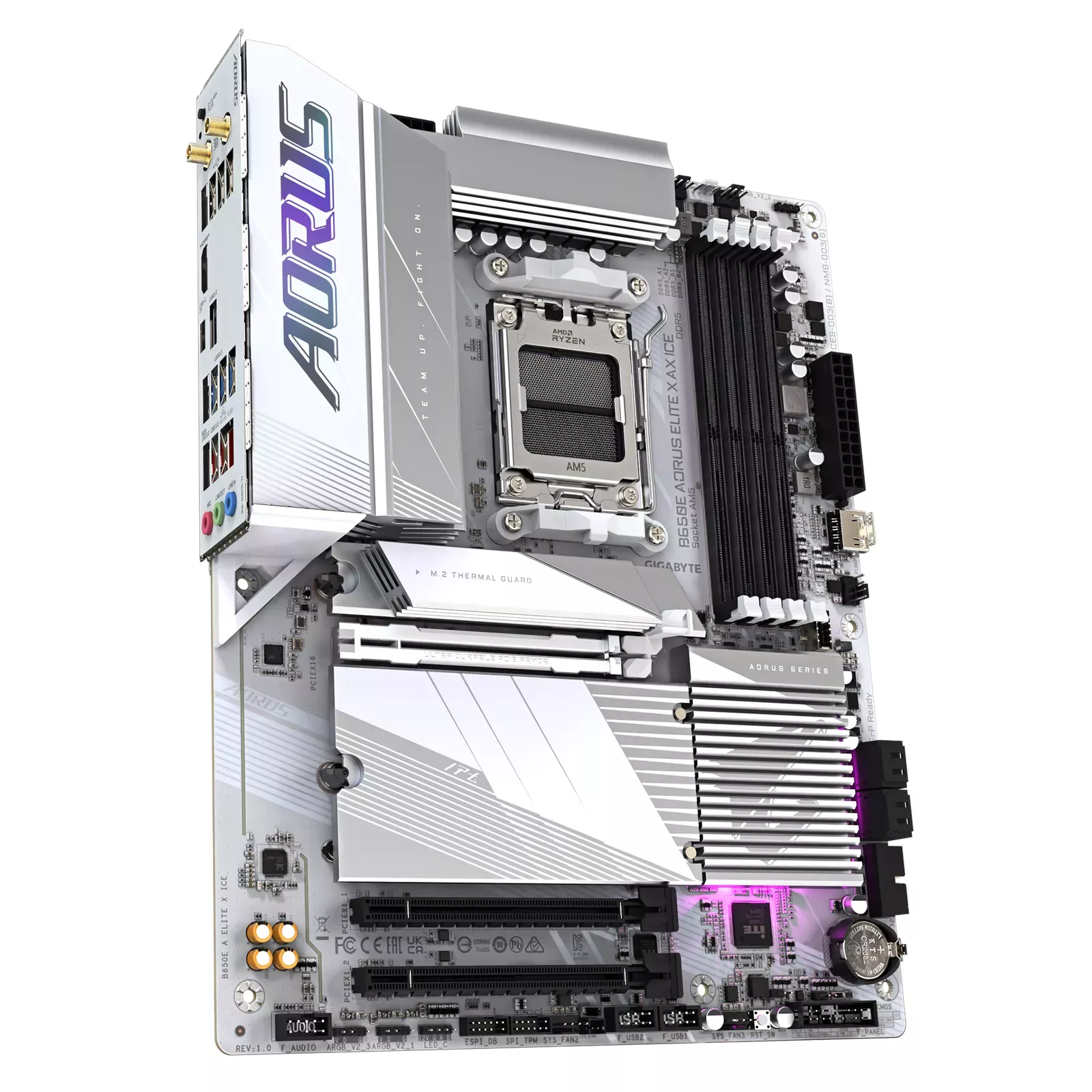

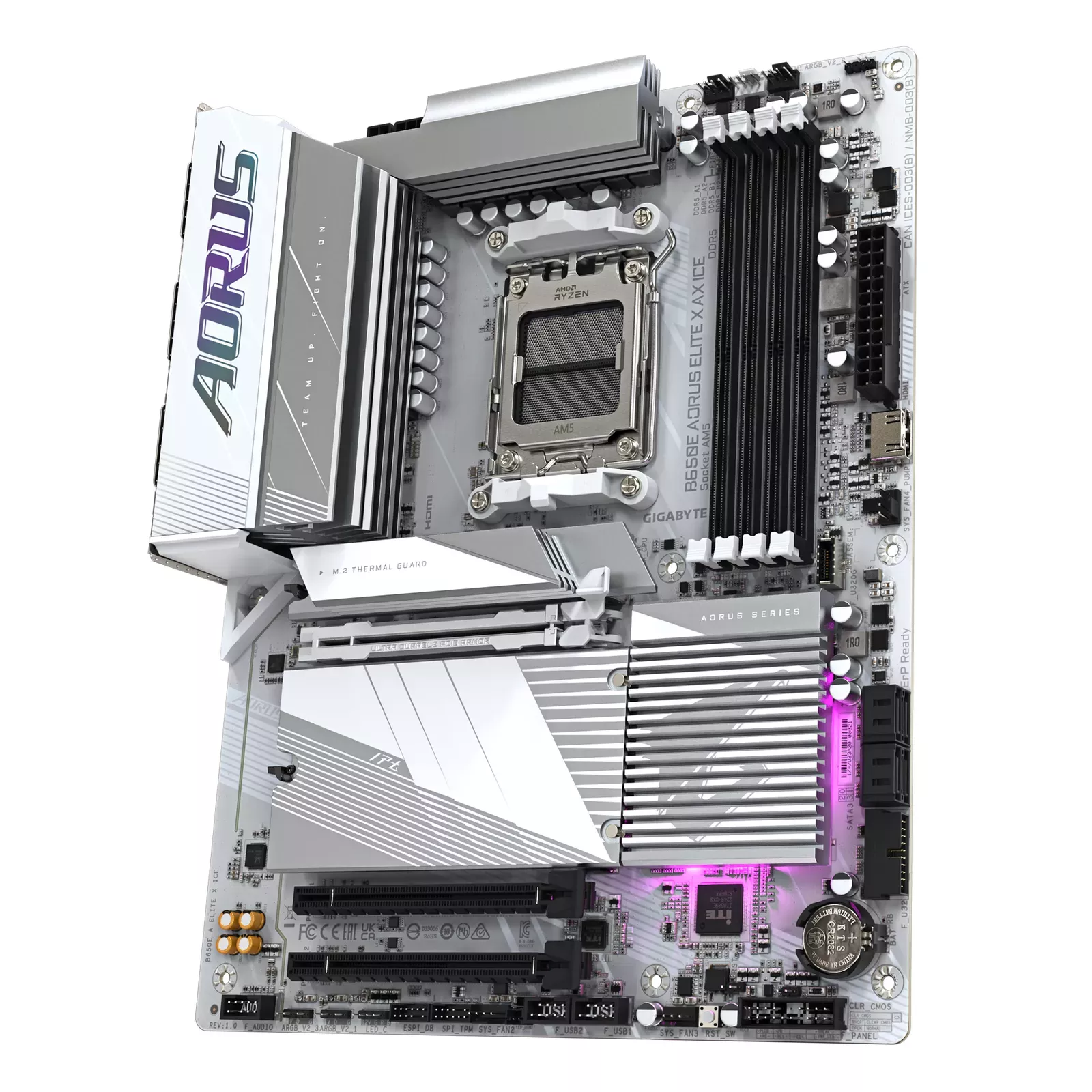

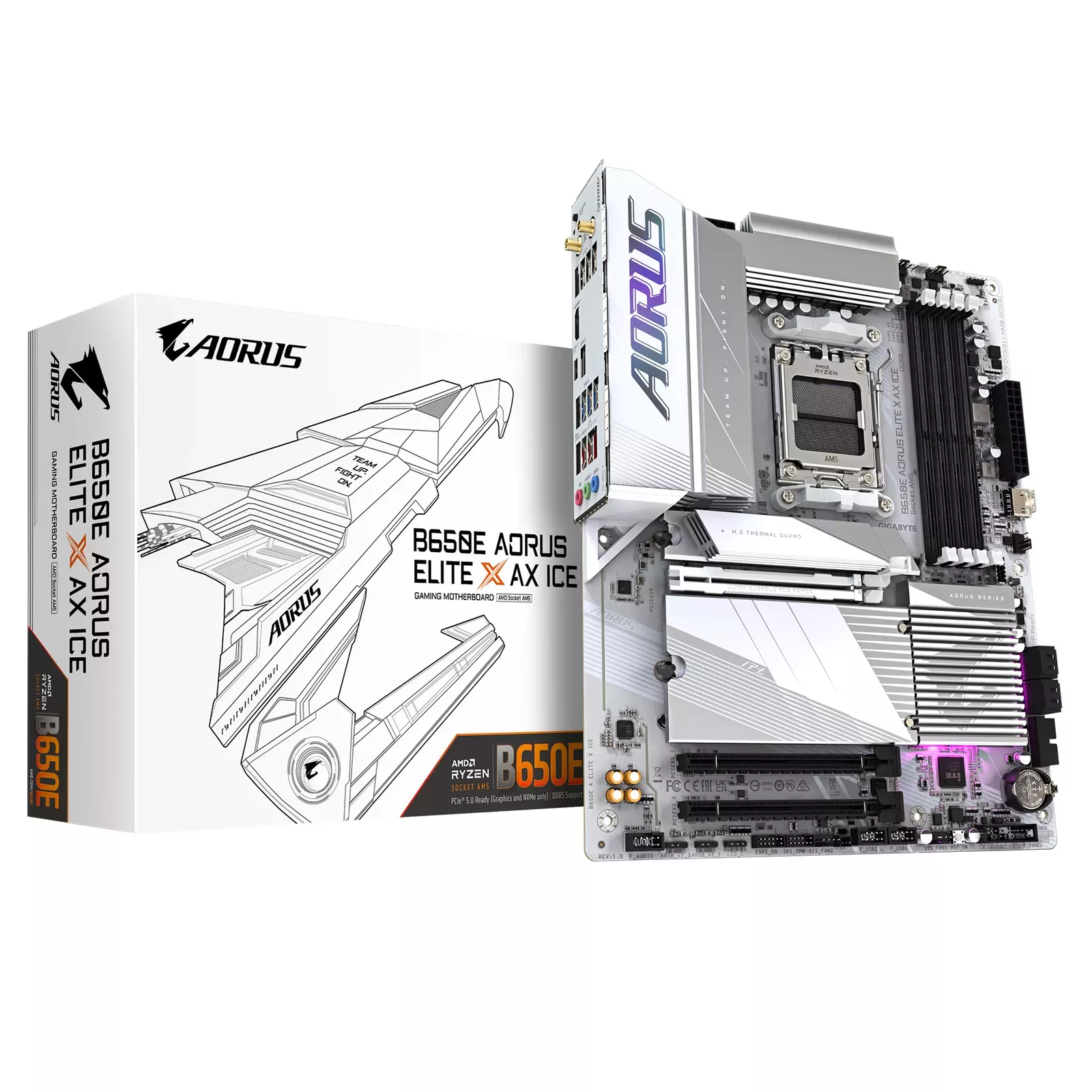

GIGABYTE B650E A Elite X ICE 1.2 emaplaat AMD AM5 / B650E / DDR5 / 4×DIMM / ATX (B650EAELITEXICE)

The Gigabyte B650E A Elite X ICE 1.2 motherboard is designed for AMD Ryzen processors using the AM5 socket and built on the B650E chipset supporting PCIe 5.0. It includes four DDR5 slots, multiple high-speed M.2 connectors, reinforced PCIe slots and a strong VRM system with extended heatsinks. The ATX form factor provides wide expandability for gaming and workstation builds. SpecificationsModel: Gigabyte B650E A Elite X ICE 1.2Device type: MotherboardCPU socket: AMD AM5Chipset: AMD B650EForm factor: ATX MemoryType: DDR5Slots: 4× DIMMMode: Dual ChannelMax capacity: 192 GBProfiles: AMD EXPO / XMPSpeeds: high DDR5 OC frequencies PowerVRM: multi-phase designCooling: large VRM heatsinks with thermal padsCPU power: 8-pin + 8-pinMain power: 24-pin ATX Expansion1× PCIe 5.0 x16 (reinforced)1× PCIe 4.0 x16 (x4 electrical)1× PCIe 3.0 x1 Storage3× M.2— 1× PCIe 5.0 x4 (2280)— 2× PCIe 4.0 x4 (2280)4× SATA 6 Gb/sRAID 0 / 1 / 10 WirelessWi-Fi 6 / 6EBluetooth supported Networking & audioLAN: 2.5 GbEAudio: HD Audio Rear I/OUSB 3.2 Gen2 Type-CUSB 3.2 Gen2USB 3.2 Gen1USB 2.0HDMIRJ-45Audio jacks On-board headersARGB/RGB headersCPU_FAN, PUMP, SYS_FANFront USB headers Other featuresBIOS update without CPUReinforced PCIe slotsTPM supportWindows 11 support Board dimensions: 30.5 cm × 24.4 cm Physical parametersWeight: 1.20 kgGross weight: 2.00 kgPackage dimensionsLength, m: 0.3300Height, m: 0.2800Width, m: 0.0700
