CORSAIR Frame 5000D RS Airflow ATX-kast, valge (CC-9011307-EE) (CC-9011307-WW)

The Corsair Frame 5000D RS Airflow is a spacious and versatile ATX mid-tower designed specifically for building powerful gaming PCs. The white case offers excellent airflow thanks to its innovative 3D Y-patterned steel mesh, and it can accommodate large components such as graphics cards up to 450 mm long and CPU coolers up to 175 mm tall. The case's modular design allows for easy customization and expansion according to your needs.

Airflow and Cooling

The Frame 5000D RS Airflow supports up to 14 fans and multiple radiators, including up to 420 mm radiators at the top. It comes with four quiet and efficient RS140 PWM fans that can be daisy-chained together for easy installation. The case is designed to direct cool air exactly where it is needed, helping to keep components cool even under load.

Modular and Customizable Design

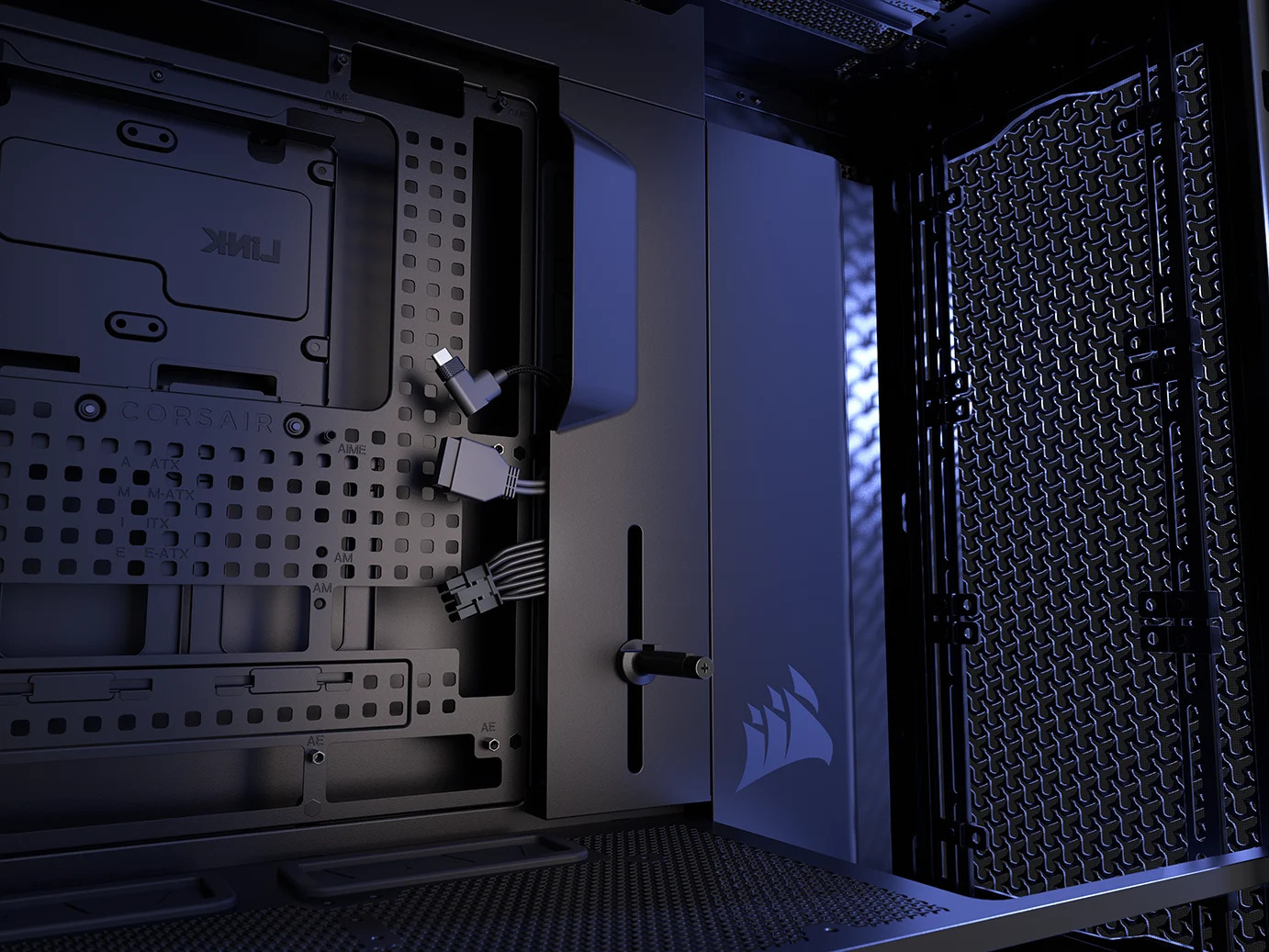

The FRAME Modular Case System offers nearly unlimited possibilities for customizing the case. You can swap the motherboard tray, add USB ports, or make other changes easily. The RapidRoute 2.0 cable management system keeps cables neatly organized and further improves airflow.

Practicality and Finish

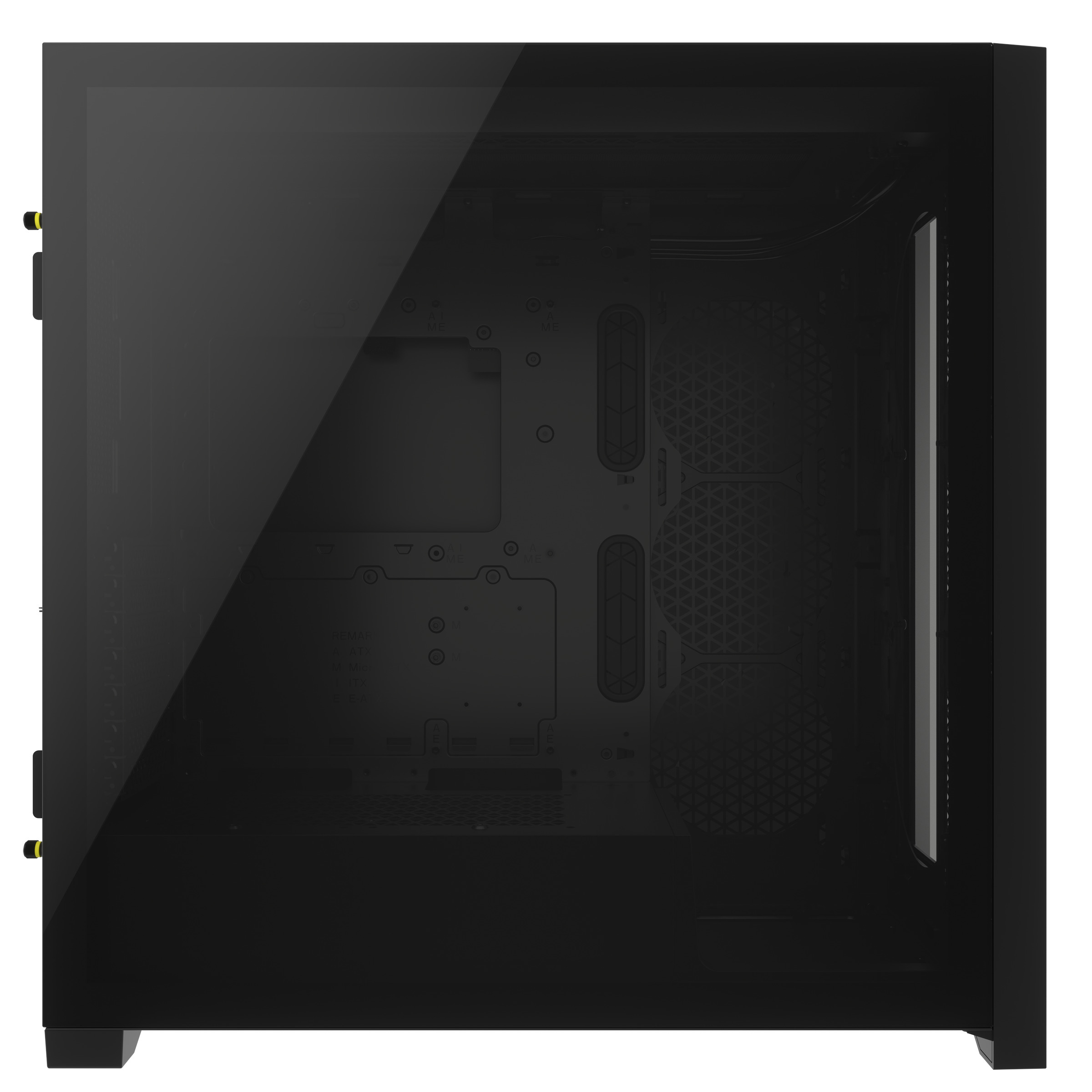

The case features a tempered glass side panel that stylishly showcases the internal components. The front panel includes modern connections such as a USB 3.2 Gen 2 Type-C port and four USB 3.2 Gen 1 Type-A ports, as well as a combined headphone and microphone jack. The GPU Anti-sag support keeps the graphics card securely in place, and dust filters prevent dirt buildup.

Capacity and Compatibility

The white Frame 5000D RS Airflow is compatible with ATX, EATX, micro ATX, and Mini-ITX motherboards. It offers plenty of space for hard drives and SSDs: two 3.25" and six 2.5" drive bays. The case dimensions are 250 mm wide, 556 mm deep, and 542 mm high, with a weight of approximately 15.5 kg.

Features

• Case: Midi Tower
• Supported motherboards: ATX, EATX, micro ATX, Mini-ITX
• Drive bays: 2 x 3.25", 6 x 2.5"
• Expansion slots: 8
• Materials: Steel, plastic, tempered glass
• Side panel: Tempered glass
• Lighting: ARGB, front panel
• Front fan mounts: 3 x 120/140/200 mm (3 RS140 included)
• Side fan mounts: 3 x 120/140 mm
• Rear fan mount: 1 x 120/140 mm (1 RS140 included)
• Top fan mounts: 3 x 120/140 mm
• Bottom fan mounts: 4 x 120 mm
• Radiator support: Top 420 mm, front 360 mm, side 360 mm, rear 120/140 mm
• Maximum CPU cooler height: 175 mm
• Maximum GPU length: 450 mm
• Power supply: ATX form factor, not included
• USB ports: 1 x USB 3.2 Gen 2 Type-C, 4 x USB 3.2 Gen 1 Type-A
• Headphone/microphone combo jack
• Dust filters
• RapidRoute 2.0 cable management
• GPU Anti-sag support
• Weight: 15.5 kg
• Warranty: 2 years

Package Contents

• Corsair Frame 5000D RS Airflow ATX case, white
• 4 x RS140 PWM fans
• User manual
