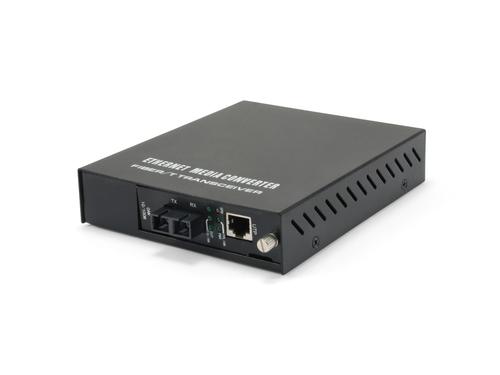

LevelOne RJ45-SC haldusega kiire Etherneti meediakonverter, ühe moodi kiudoptika, 20 km (FVM-1220)

FVM-1220 is remote Managed Fast Ethernet fiber media converter with OAM functions developed by our company. It can convert Ethernet signal between 10/100Base-Tx and 100Base-FX, It supports both half-duplex and full-duplex operations and a variety of fiber options. It is double fiber, single mode, 20km media converter.

Remote devices can be managed by fiber-connected OAM media converter or OAM switch when deployed as a stand-alone solution. It incorporates an easy to use Web user interface for operation, administration and maintenance, both locally and remotely. By offering IEEE802.3ah OAM compliance, this converter can be linked to any IEEE802.3ah compliant fiber switch and support loop back and dying gasp functions. All functions of this converter and the remotely connected converter can be configured and monitored via Web management, including bandwidth control, duplex, speed and VLAN configuration.

Key Features
- Web-based and SNMP Management
- Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Supports VLAN (tag-based, Q-in-Q)LevelOne RJ45 to SC Managed Fast Ethernet Media Converter, Single-Mode Fiber, 20km. Networking standards: IEEE 802.3, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, Duplex system: Full, Half. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Mean time between failures (MTBF): 30000 h. LED indicators: Activity, FDX, Link, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 100 - 240 V, Output voltage: 5 V, Output current: 2 A
