Shelly 1PM Gen3 releeklapp Wi-Fi jaoks (_1PM_Gen3) (Shelly_1PM_Gen3)

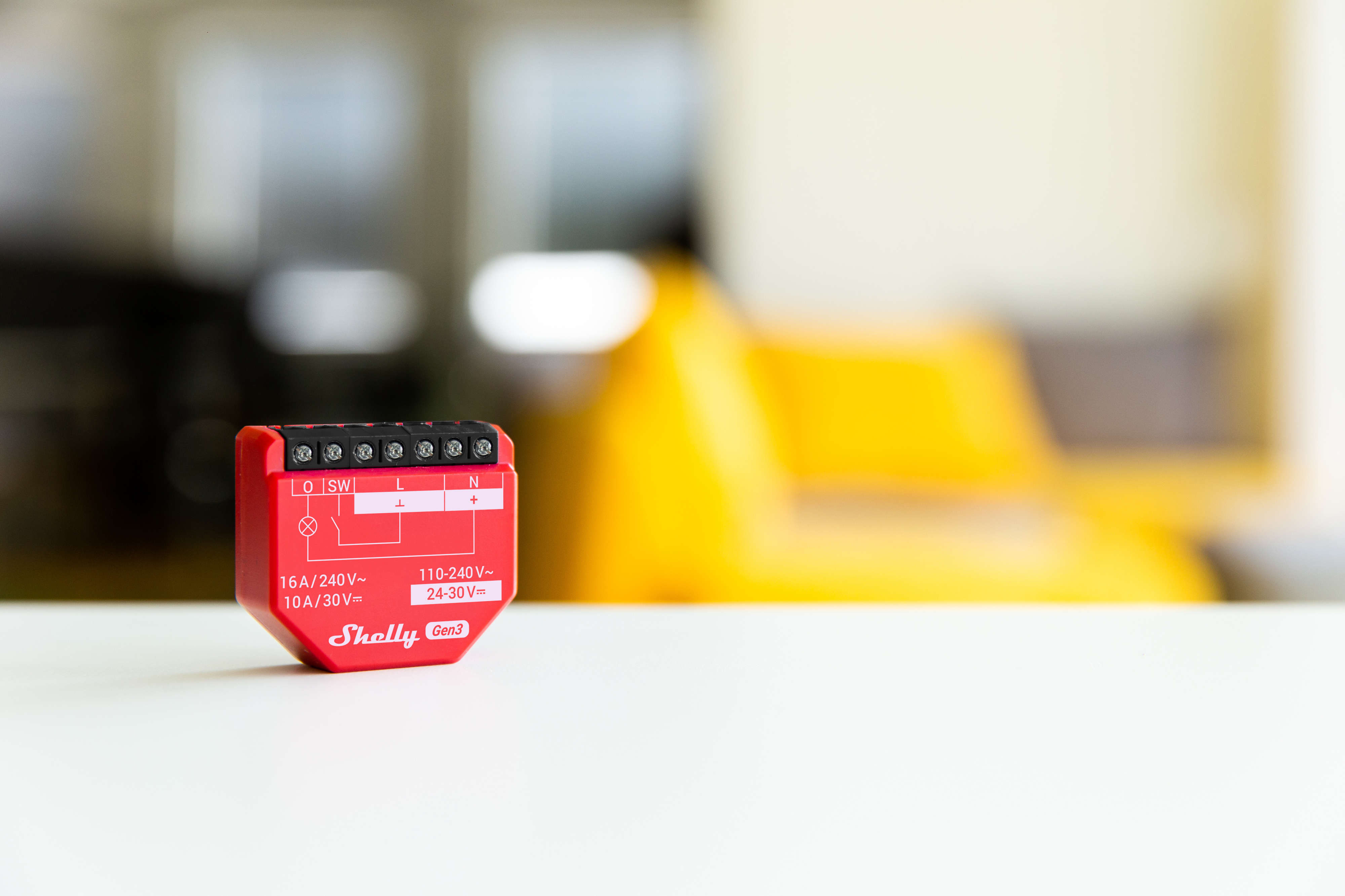

Shelly 1PM Gen3 is a power-sensitive relay switch for Wi-Fi. The relay switch can be used to control a wide range of products at any time and from anywhere. Shelly's relay switch turns your product into a smart one.

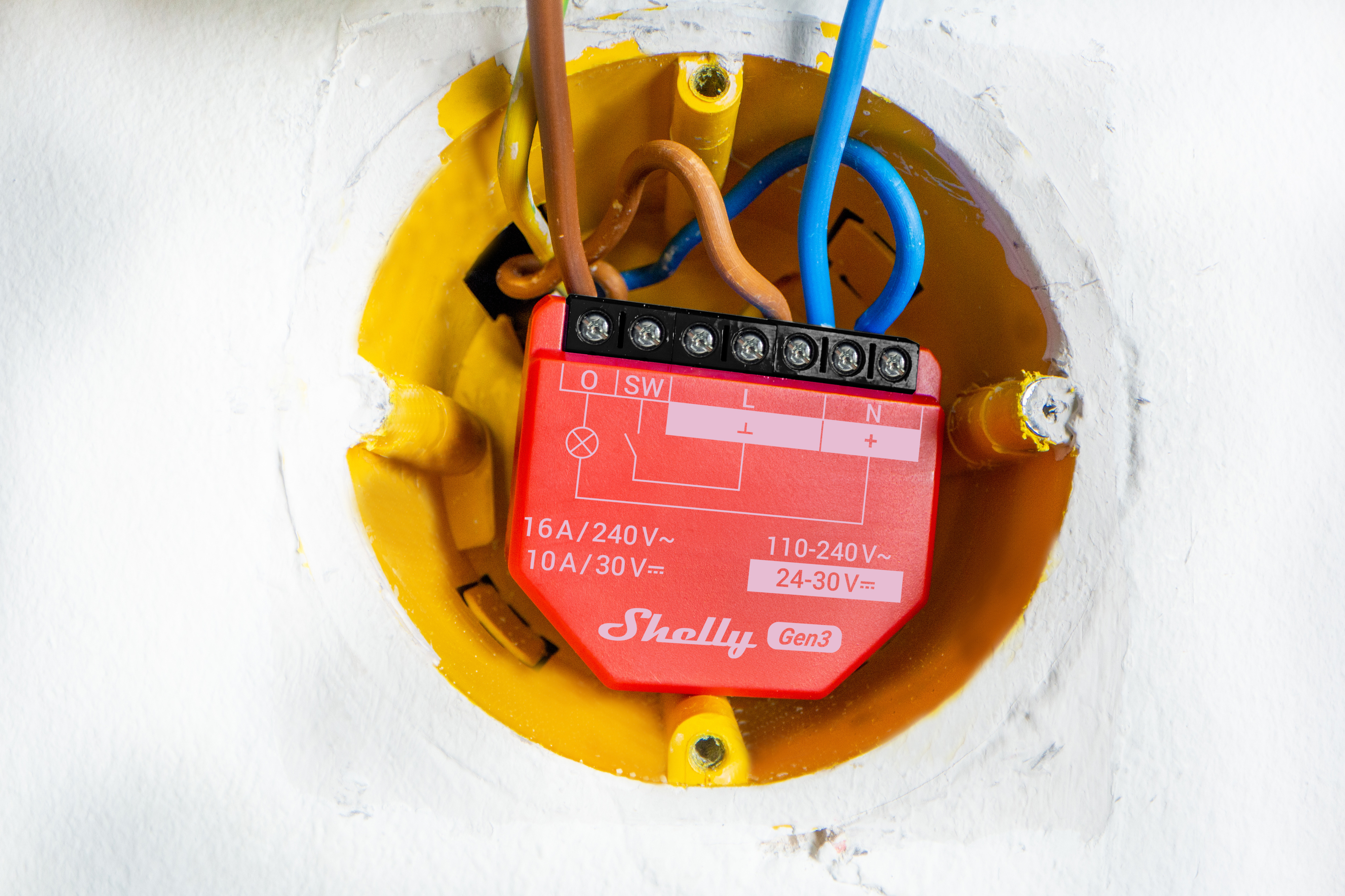

Shelly 1PM Gen3 is a compact relay switch designed to fit most electrical appliances and switches. Connecting to a wireless network, the Shelly 1PM Gen3 can be used to control things like lighting, curtains, heating or even air conditioning.

Shelly smart home products support Amazon Alexa and Google Assistant virtual assistants. In addition to the above, several other smart home systems/platforms are also supported (check product specific for compatibility). Shelly's products connect to a wireless Wi-Fi network and do not require a separate home automation controller to function.

Note, installation should only be performed by an authorized electrician.

Features:

• Accurate and real-time electricity consumption measurement
• New ESP-Shelly-C38F processor with 8 MB memory

• Provided with connector durability
• High security
• Wi-Fi transceiver and Bluetooth gateway
• Supports scripting, webhooks, MQTT, WebSocket, HTTPS:Per, UDP, TLS:and custom certificates
• Does not require a hub - Easy control with Shelly Smart Control app, various home automation protocols and platforms, and voice controllers
• Bluetooth support
• Amazon Alexa, Google Assistant support
• Shelly Cloud app - Android and iOS support

Specifications:

• Model: Shelly 1PM Gen3
• Nominal voltage: AC: 110 - 240 V, DC: 24 - 30 V
• Power consumption: < 1.2 W
• Number of channels: 1
• Maximum switching voltage: 240 V AC / 30 V DC
• Maximum load: 16 A (240 V AC) / 10 A (30 V DC)
• Power consumption measurement: yes
• Without neutral wire: no
• Overload protection: yes
• Overheating protection: yes
• Wifi standard: Wifi 802.11 b/g/n, 2.4 GHz
• Wifi operating frequency: 2401 - 2483 MHz
• Wifi transmission power: < 20 dBm
• Wifi range: 50 m outdoor, 30 m indoor
• Bluetooth standard: 4.2
• Bluetooth operating frequency: 2400 - 2483.5 MHz
• Bluetooth transmission power: < 4 dBm
• Bluetooth range: 30 m outdoor, 10 m indoor
• Processor: ESP-Shelly-C38F
• Memory: 8 MB
• Operating temperature: -20 ºC ... +40 ºC

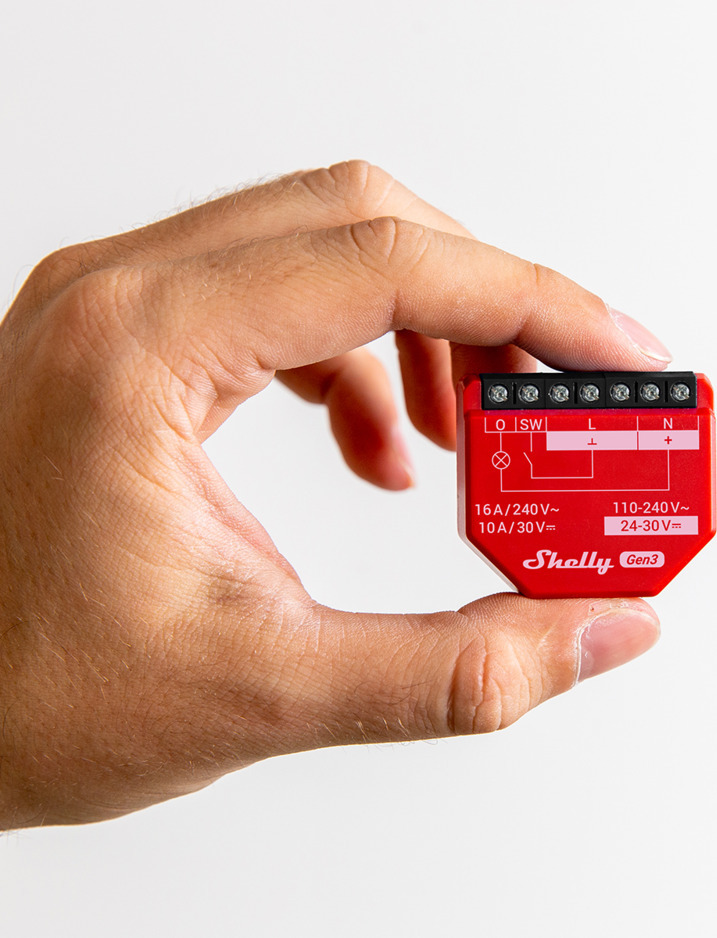

• Dimensions: 42 x 37 x 16 mm
• Weight: 27 g
