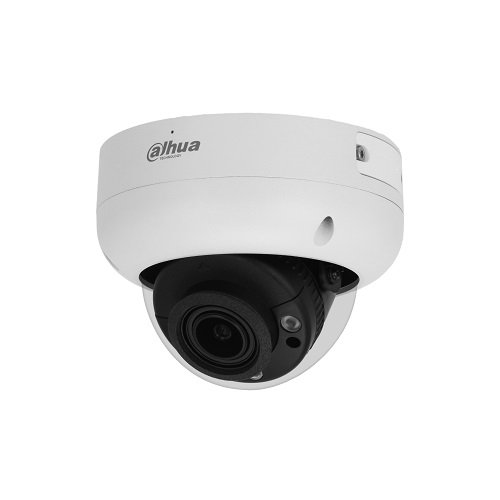

DAHUA HDBW3841R-ZS-S2 IP-võrgukaamera 8MP

Camera Image Sensor Sensor Size: 1/2.8" CMOS Max. Resolution: 3840 (H) × 2160 (V) ROM: 128 MB RAM: 1 GB Scanning System: Progressive Electronic Shutter Speed: Auto/Manual 1/3 s – 1/100,000 s Min. Illumination: 0.007 lux@F1.5 (Color, 30 IRE) 0.0007 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) S/N Ratio: >56 dB Illumination Distance: Up to 40 m (131.23 ft) Illuminator On/Off Control: Auto/Manual Illuminator Number: 3 (IR LED) Pan/Tilt/Rotation Range: Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° Lens Lens Type: Motorized vari-focal Lens Mount: ?14 Focal Length: 2.7 mm – 13.5 mm Max. Aperture: F1.5 Field of View: Horizontal: 109°–30° Vertical: 56°–17° Diagonal: 131°–35° Iris Control: Fixed Close Focus Distance: 0.8 m (2.62 ft) DORI Distance Lens Detect Observe Recognize Identify W 88.3 m (289.70 ft) 35.3 m (115.81 ft) 17.7 m (58.07 ft) 8.8 m (28.87 ft) T 289.7 m (950.46 ft) 115.7 m (379.60 ft) 57.9 m (189.96 ft) 29.0 m (95.14 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to the installation and commissioning manual/project design tool. Intelligence IVS (Perimeter Protection): Tripwire, intrusion (supports classification and accurate detection of vehicles and humans) AI SSA: Yes Quick Pick: With AI NVR, quickly pick up human/vehicle targets from SMD events Smart Search: Works together with Smart NVR for refined intelligent search, event extraction, and merging to event videos Video Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the substream) Smart Codec: Smart H.265+; Smart H.264+ AI Coding: AI H.265; AI H.264 Video Frame Rate: Main stream: 3840 × 2160 @ (1–25/30) fps Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps) The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability: 3 streams Resolution: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480) Bit Rate Control: CBR/VBR Video Bit Rate: H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps Day/Night: Auto (ICR)/Color/B/W BLC: Yes HLC: Yes WDR: 120 dB Scene Self-adaptation (SSA): Yes White Balance: Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom Gain Control: Auto Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Image Stabilization: Electronic Image Stabilization (EIS) Region of Interest (RoI): Yes (4 areas) Defog: Yes AFSA: Yes Image Rotation: 0°/90°/180°/270° (supports 90°/270° with 2688 × 1520 resolution and lower) Mirror: Yes Privacy Masking: 4 areas Audio Built-in MIC: Yes Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723 Alarm Alarm Event: No SD card; SD card full; SD card error; Service life warning (only supported by Dahua card); Network disconnection; IP conflict; Illegal access; Motion detection; Video tampering; Intrusion; Tripwire; Scene changing; Audio detection; Voltage detection; Defocus detection; SMD; Safety exception Network Network Port: RJ-45 (10/100 Base-T) SDK and API: Yes Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P Cyber Security: Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI User/Host: 20 (Total bandwidth: 64 M) Storage: FTP; SFTP; Micro SD card (supports up to 256 GB); NAS Browser: IE11; Chrome; Firefox Management Software: SmartPSS Lite; DSS; DMSS Mobile Client: iOS; Android Certification Certifications: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 Power Power Supply: 12 VDC/PoE (802.3af) Power Consumption: Basic: 4 W (12 VDC); 4.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 9.2 W (12 VDC); 10.5 W (PoE) Environment Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F) / Less than 95% RH Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Protection Protection: IP67; IK10
