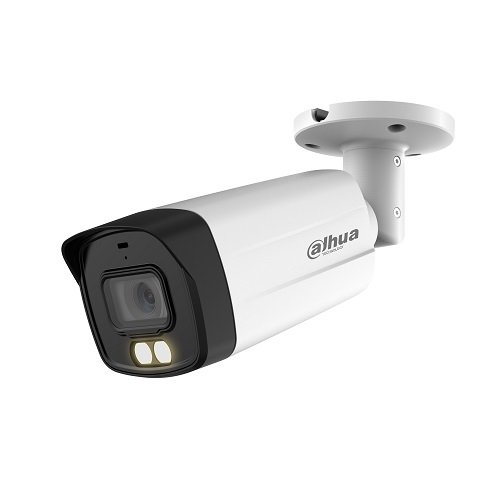

DAHUA CVI2 Kamera HAC-HFW1239TM-IL-A 3.6mm / CVI/TVI/AHD/CVBS (HFW1239TIL36)

Specification: Pixel: 2 MP Image Sensor: 2 MP CMOS Max. Resolution: 1920 (H) × 1080 (V) Scanning System: Progressive Electronic Shutter Speed: PAL: 1/25 s – 1/100,000 s NTSC: 1/30 s – 1/100,000 s Min. Illumination: 0.001 lux @F1.6 (Color, 30 IRE) 0.0001 lux @F1.6 (B/W, 30 IRE) 0 lux (IR on) S/N Ratio: >65 dB Illumination Distance: IR: 40 m (131 ft) Warm light: 40 m (131 ft) Illuminator Control: Auto/Manual Illuminator Number: 2 × IR, 2 × Warm light Pan/Tilt/Rotation Range: Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Lens: Lens Type: Fixed-focal Lens Mount: M12 Focal Length: 3.6 mm Max. Aperture: F1.6 Field of View (3.6 mm): H: 86°, V: 46°, D: 101° Iris Control: Fixed Close Focus Distance: 1.1 m (3.6 ft) DORI Distance (3.6 mm): Detect: 53.7 m (176 ft) Observe: 21.5 m (71 ft) Recognize: 10.7 m (35 ft) Identify: 5.4 m (18 ft) Video: Frame Rate: CVI: PAL 1080p@25 fps / NTSC 1080p@30 fps AHD: PAL 1080p@25 fps / NTSC 1080p@30 fps TVI: PAL 1080p@25 fps / NTSC 1080p@30 fps CVBS: PAL 960×576H / NTSC 960×480H Resolution: 1080p (1920×1080), 960H (960×576 / 960×480) Day/Night: Auto (ICR) / Color / B/W BLC: BLC, HLC, WDR WDR: 130 dB White Balance: Auto / Area Gain Control: Auto/Manual Noise Reduction: 3D NR Smart Illumination: Yes Mirror: On/Off Privacy Masking: On/Off (8 areas, rectangle) Illuminator Modes: Smart IR & WL, WL Mode, IR Mode Certification: CE: EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017 FCC: CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014 UL: UL62368-1 + CAN/CSA C22.2 No.62368-1-14 Ports: Video Output: CVI/TVI/AHD/CVBS (1 × BNC port) Audio Input: 1 channel, built-in MIC (-A) Power Power Supply: 12 VDC ±30% Consumption: Max 4.0 W (LED on) Environment: Operating Temp.: –40 °C to +60 °C (–40 °F to +140 °F) Humidity: <95% RH (non-condensing) Storage Temp.: –40 °C to +60 °C (–40 °F to +140 °F) Protection: IP67 Structure: Casing Material: Metal Product Dimensions: 240.7 × 90.7 × 90.4 mm (9.48" × 3.57" × 3.56") Packaging Dimensions: 299 × 119 × 111 mm (11.77" × 4.69" × 4.37") Net Weight: 0.65 kg (1.43 lb) Gross Weight: 0.89 kg (1.96 lb) Installation: Wall mount / Ceiling mount / Pole mount
