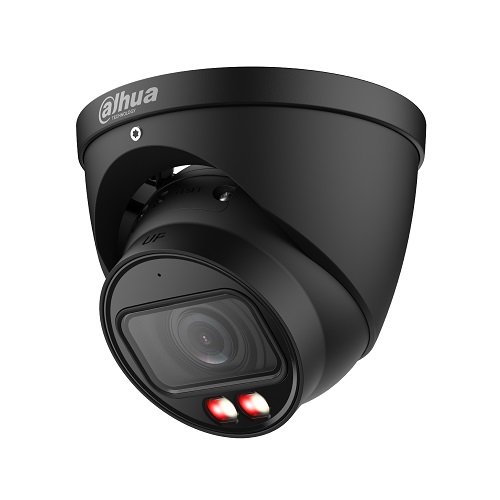

DAHUA HDW2449T-ZS-IL 4MP IP-võrgukaamera (HDW2449TZS-B)

Camera Image Image Sensor1/2.9" CMOS Max. Resolution2688 (H) × 1520 (V) ROM128 MB RAM128 MB Scanning SystemProgressive Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s Min. Illumination0.006 lux@F1.5 (Color, 30 IRE)0.0006 lux@F1.5 (B/W, 30 IRE)0 lux (Illuminator on) S/N Ratio 56 dB Illumination DistanceUp to 40 m (131.23 ft) (IR)Up to 40 m (131.23 ft) (Warm light) Illuminator On/Off ControlAuto; Manual Illuminator Number2 (Multi-core (IR + warm) light) Angle AdjustmentPan: 0°–360°Tilt: 0°–78°Rotation: 0°–360° Lens Lens TypeMotorized vari-focal Lens Mount?14 Focal Length2.7 mm–13.5 mm Max. ApertureF1.5 Field of ViewH: 97°–28°; V: 52°–16°; D: 117°–32° Iris ControlFixed Close Focus Distance0.8 m (2.62 ft) DORI Distance Lens DetectObserveRecognizeIdentify 2.7 mm–13.5 mm210.0 m (209.97 ft)84.0 m (83.99 ft)42.0 m (41.99 ft)21.0 m (20.99 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. Intelligence IVS (Perimeter Protection)Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) SMDSMD Plus Smart SearchWorks together with Smart NVR to perform refined intelligent search, event extraction, and merging into event videos Video Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub-stream) Smart CodecSmart H.265+; Smart H.264+ Video Frame RateMain stream: 2688 × 1520@(1–20 fps) / 2560 × 1440@(1–25/30 fps)Sub stream: 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps) The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability2 streams Resolution4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate ControlVBR; CBR Video Bit RateH.264: 32 kbps–6144 kbpsH.265: 12 kbps–6144 kbps Day/NightAuto (ICR)/Color/B/W BLCYes HLCYes WDR120 dB White BalanceAuto; natural; street lamp; outdoor; manual; regional custom Gain ControlAuto/Manual Noise Reduction3D NR Motion DetectionOFF/ON (4 areas, rectangular) Region of Interest (RoI)Yes (4 areas) Smart IlluminationYes Smart Dual LightYes Image Rotation0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) MirrorYes Privacy Masking4 areas Audio Built-in MICYes, built-in Mic Audio CompressionG.711a; G.711Mu; G.726; PCM Alarm Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; SMD; security exception Network Network PortRJ-45 (10/100 Base-T) Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P InteroperabilityONVIF (Profile S & Profile T & Profile G); CGI User/Host6 (Total bandwidth: 36 M) StorageFTP; SFTP; Micro SD card (support max. 256 GB) BrowserIEChromeFirefox Management SoftwareSmart PSS Lite; DSS; DMSS; DoLynk Care Mobile ClientiOS; Android Cyber SecurityVideo encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade Certification CertificationsCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU Power Power Supply12 VDC; PoE (802.3af) Power ConsumptionBasic: 2.3 W (12 VDC), 2.8 W (PoE)Max.: 7.8 W (12 VDC), 9.3 W (PoE) (H.265 + intelligence on + WDR + warm light intensity) Environment Operating Temperature–30 °C to +60 °C (–22 °F to +140 °F) Operating Humidity?95% (RH), non-condensing Storage Temperature–30 °C to +60 °C (–22 °F to +140 °F) Storage Humidity?95% (RH), non-condensing Protection IP67
