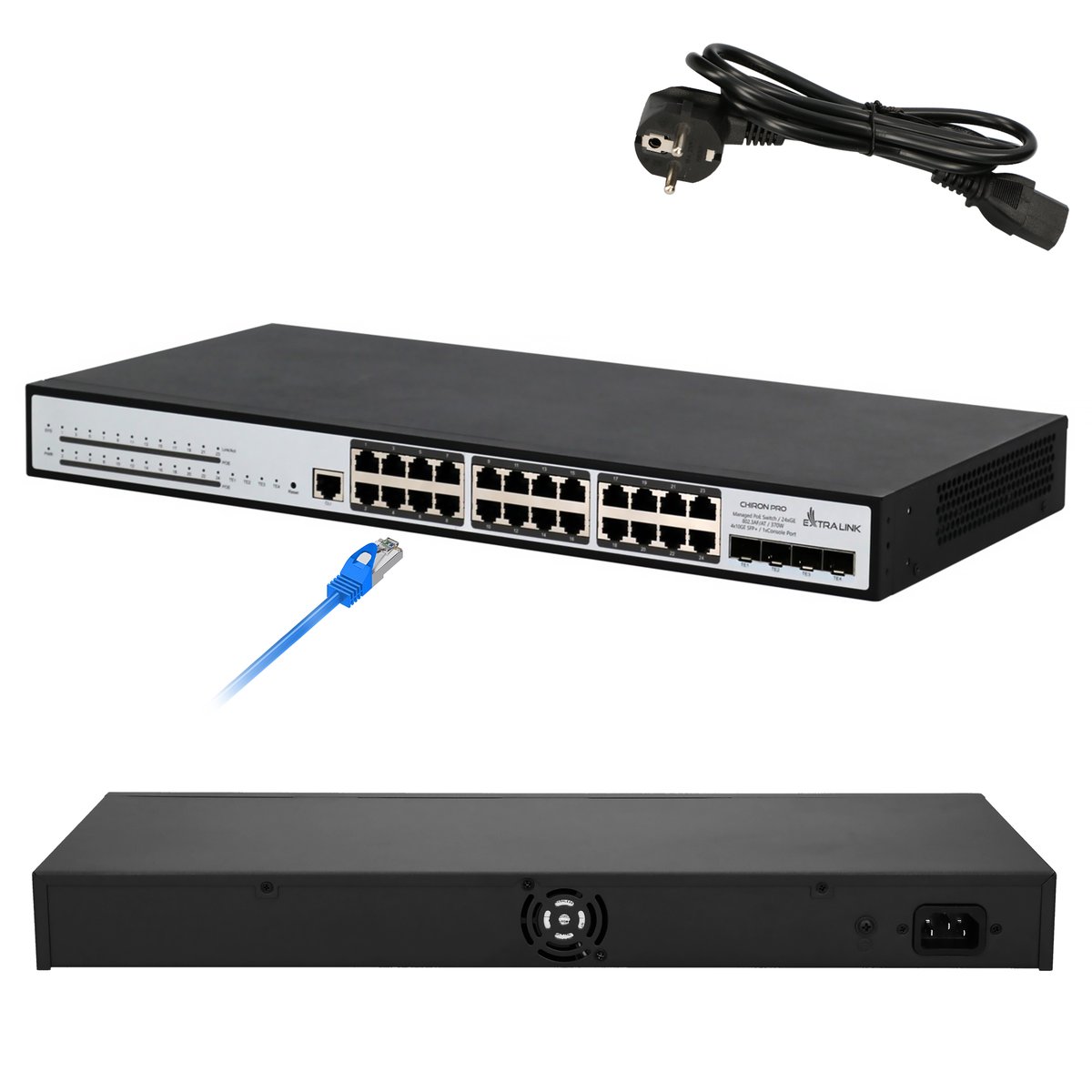

Extralink Chiron Pro | PoE-lüliti | 24x RJ45 1000Mb/s PoE, 4x SFP+, L3, hallatav, 370W (EX.19737)
Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
Hind
€ 153.10Veebipoe hind võib erineda esinduse kohapealsest hinnast.
Punktid
+153
Tarneviis ja tarneaeg
-
4-8 päeva -
4-8 päeva -
4-8 päeva -
4-8 päeva -
4-8 päeva
Järelmaks
alates € 4.33 /kuus
Toote andmed
| Tootekood | EX.19737 |
| EAN | 5903148919737 |
Tootekirjeldus
| Rack rails | Tak |
| Installed SFP+ modules quantity | 4.0000 |
| Basic switching RJ-45 Ethernet ports type | gigabit_ethernet_10_100_1000 |
| Basic switching RJ-45 Ethernet ports quantity | 24.0000 |
| Total Power over Ethernet (PoE) budget | 370,0000 |
| Packet buffer memory | 1,5000 |
| Power source | mains electricity |
| Height | 44,0000 |
| Width | 440,0000 |
| Depth | 210,0000 |
| Product colour | white |
| Noise level | 37,5000 |
| Switching capacity | 128,0000 |
| Networking standards | ieee_802_3af, ieee_802_3at, ieee_802_3x |
| Rack mount kit | Tak |
| Jumbo frames | 9000.0000 |
| Power connector | ac_in_jack |
| Power over Ethernet (PoE) | Tak |
| Switch layer | l3 |
| Quality of Service (QoS) support | Tak |
| Stackable | Nie |
| Web-based management | Tak |
| IP routing | Tak |
| Switch type | managed |
| Virtual LAN features | voice_vlan |
| DHCP features | dhcp_client, dhcp_option_82, dhcp_relay, dhcp_server, dhcp_snooping |
| Rack mounting | Tak |
| Housing material | metal |
| Flash memory | 16,0000 |
| MAC address table | 16000,0000 |
| VLAN support | Tak |
| 10G support | Tak |
| Form factor | 1U |
| Weight | 3000,0000 |
| Power supply included | Tak |
Extralink Chiron Pro is a 24-port Layer 3 switch with next-generation PoE power. It is targeted at IP MAN (metropolitan area network), government and corporate networks, Internet cafes. It is developed based on high-performance hardware and supports features such as efficient ACLs, flexible QinQ, 1:1 or N:1 VLAN switching, Ethernet OAM, carrier-level QoS and industry-level 10GE Ether-ring. It also supports Layer 3 routing protocol.
High reliabilityBased on an advanced distribution mechanism and an efficient cross-physical link aggregation function, the logic control plane, service control plane and service data plane are separated. This allows Extralink Chiron Pro to support continuous routing redirection at Layer 3, avoiding service interruption due to a single failure.
Telecommunications level Ethernet switch
Chiron Prosupports telecom-level Ethernet protection protocol with less than 50 ms protection offset time, STP/RSTP/MSTP, active and backup uplinks, and LACP link aggregation to ensure high service reliability. Provides an excellent Ethernet OAM mechanism for real-time network health monitoring for rapid problem localization and detection.
Supports In-Service Software Upgrade (ISSU) to ensure uninterrupted data transfer during system upgrades. Supports various L2 multicast functions, including IGMP-Snooping, fast-leave and trans-vlan.
- It supports management modes such as console port, Telnet, SSH, etc.
- Supports WEB management mode, which is easy and efficient, making installation and debugging convenient
- Support for file upload/download management via TFTP protocol
- Supports ISSU (In-Service Software Upgrade).
- Supports priority retagging and complex flow classification based on VLAN, MAC, source address, destination address, IP or priority to enhance service levels
- Provides flexible bandwidth control policies and supports port/flow-based flow limit, and provides line speed redirection of each port to ensure high-quality video, audio and data services
- Supports 8 priority queues per port
- Supports multiple queue scheduling algorithms, e.g. SP, WRR and SP WRR
- Supports IPv6 protocol suite, IPv6 neighbor detection, ICMPv6, path MTU detection, etc.
- Supports Ping, Traceroute, Telnet, SSH, ACL based on IPv6, meeting IPv6 network requirements for hardware management and service control
The advanced hardware infrastructure design implements tier-based packet scheduling and packet protection, prevents DoS-/TCP attacks related to SYN flood, UDP flood, broadcast storm or heavy traffic, and supports tier-based command-line protection, giving different levels of users different management privileges.
Intelligent PoEThe Extralink Chiron Pro supports the IEEE 802.3af/at PoE standard with a total maximum power of 370W.
