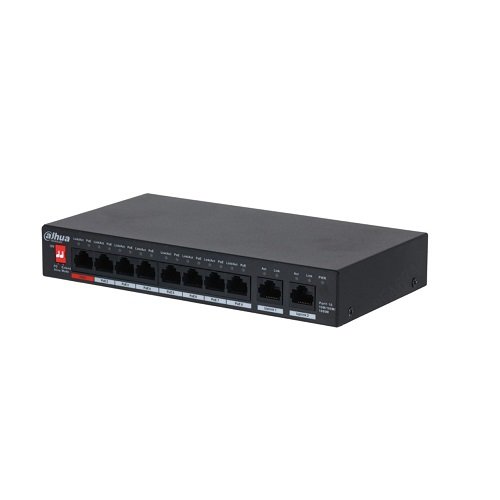

DAHUA PFS3010-8GT-96 8-port PoE lüliti

PoE hub 8*100Mbps PoE ports and 2 Uplink 1000Mbps, Port1-60W, Port2-8-30W, Total-96W• 10-port unmanaged gigabit switch with 8-port PoE.• 8-pin simultaneous PoE power supply (1/2/4/5 positive, 3/ 6/7/8 negative). Signal lines and idle lines supply power at the same time.• Improved compatibility with IPC. Cable loss is reduced. Increased charging capacity.• 2 types of transmission modes (Advanced mode on / Advanced mode off).• Red port supports IEEE802.3bt and Hi-PoE standards, max. 90W.• Smart PoE manages power consumption and offers real-time monitoring.• The innovative PoE Watchdog can be activated by dialing a number or turning on the WEB page switch.• Desktop installation is supported. < br /> • Supports IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x standards.• Complies with IEEE802.3af and IEEE802.3at power supply standard.Technical specifications :• Model PFS3010-8GT-96.• Ethernet port: 8x 10/100/1000Mbps, Uplink 2x 10/100/1000Mbps; PoE Ports: 8x 10/100/1000Mbps.• PoE Power Consumption: Full Load = 96W, Idle: 3W.• Power Consumption Management: Yes.• PoE PIN Assignment: 1 , 2, 4, 5 (V+), 3, 6, 7, 8 (V-).• Communication standards: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab.• PoE protocol: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt.• Switching capacity: 20 Gbps.• Packet forwarding rate: 14.88 Mpps.• Packet buffer memory: 1.5 Mbit.• MAC tables size: 4K.• Long range PoE: 250m distance PoE transmission.• Usage humidity: 5% ~ 95%.• Power supply: 48V - 57V DC.• Lightning protection Common mode: 4 kV.• Differential mode: 2 kV.• ESD protection Air discharge: 8 kV.• Contact discharge: 6 kV.• Operating temperature: - 10°C~55°C.
