Phanteks AMP GH ATX toiteallikas, 1000 W, must (PH-P1000GH_BK01_EU)

Phanteks AMP GH series power supplies feature modular cabling and stylish textile-coated cables for easy and neat installation. An improved 120mm hydraulic dynamic bearing fan allows for temperature-controlled operation in Hybrid Fanless mode, ensuring near-silent performance.

The AMP GH power supply is ATX 3.1 compliant and ready to meet the hardware requirements of new and upcoming CPU and graphics cards. PCIe Gen 5.1 graphics card cabling technology allows the 12V-2×6 connector to deliver up to 600W of power through a single cable.

Premium hybrid mode: Cutting-edge fan control allows the power supply to operate completely fanless at less than 40% load, making it ideal for quiet system configurations.

Rolling high-current connectors:Reduce power transfer resistance and improve efficiency.

120 mm hydraulic dynamic bearing fan:Hydraulic dynamic bearing (HDB) improves lubrication and increases stability and longevity.

Cable-free interface design: The rear panel and PCB are connected with a copper plate to improve output power quality.

Useful graphics card support: Multiple 6-pin and 8-pin output connectors support all multi graphics card platforms.

Features:

• Power: 1000W (+5V: 20A, +3.3V: 20A, +12V: 83A, -12V: 0.3 A, +5Vsb: 3 A)
• 80 Plus Platinum certified
• ATX 3.1, PCIe 5.1
• Modularity: yes
• Fan size: 120 mm
• Fan: Hydraulic Dynamic Bearing, Hydro Dynamic Bearing (HDB)
• Protection: OPP, OVP, UVP, SCP, OCP, OTP, No-Load Protection, Reset Protection
• Size: 140 x 150 x 86 mm

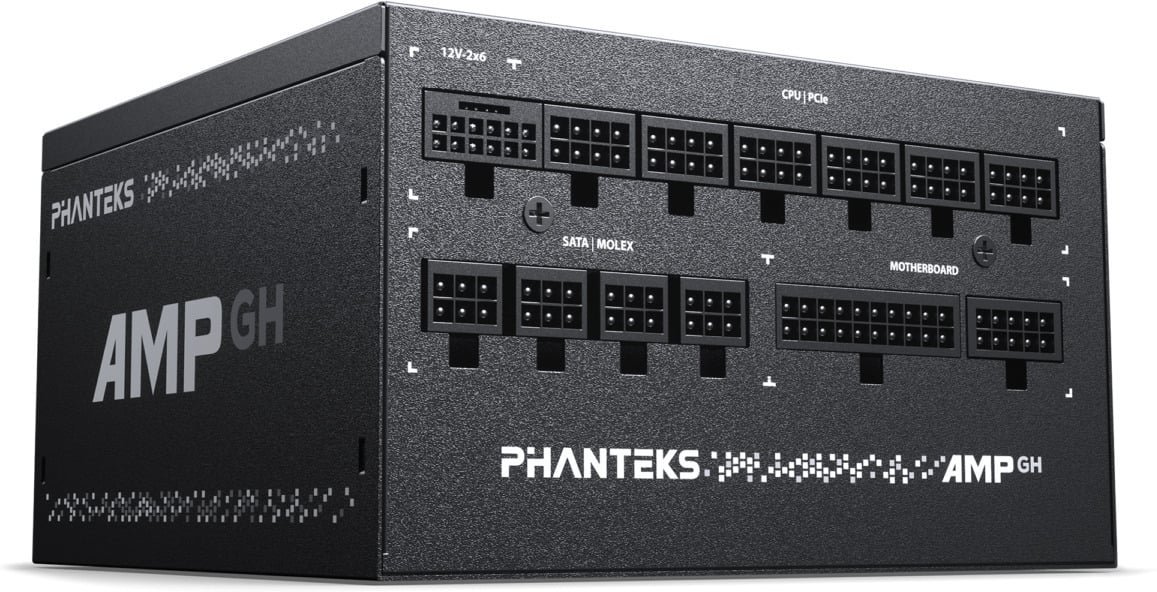

Connectors:

• 1 x ATX 24 Pin
• 5 x CPU | PCIe
• 3 x SATA | Molex
• 1 x 12V-2×6
