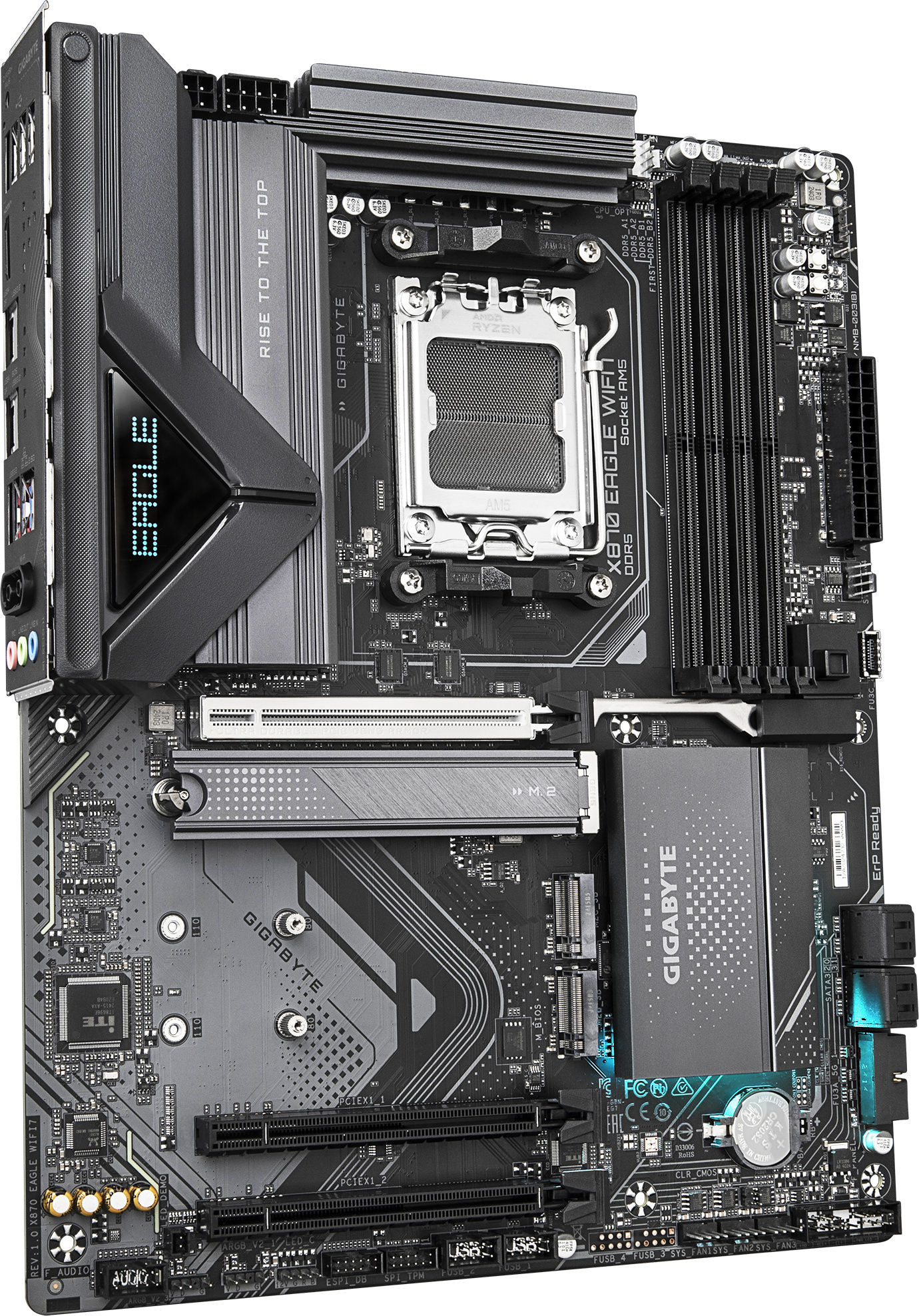

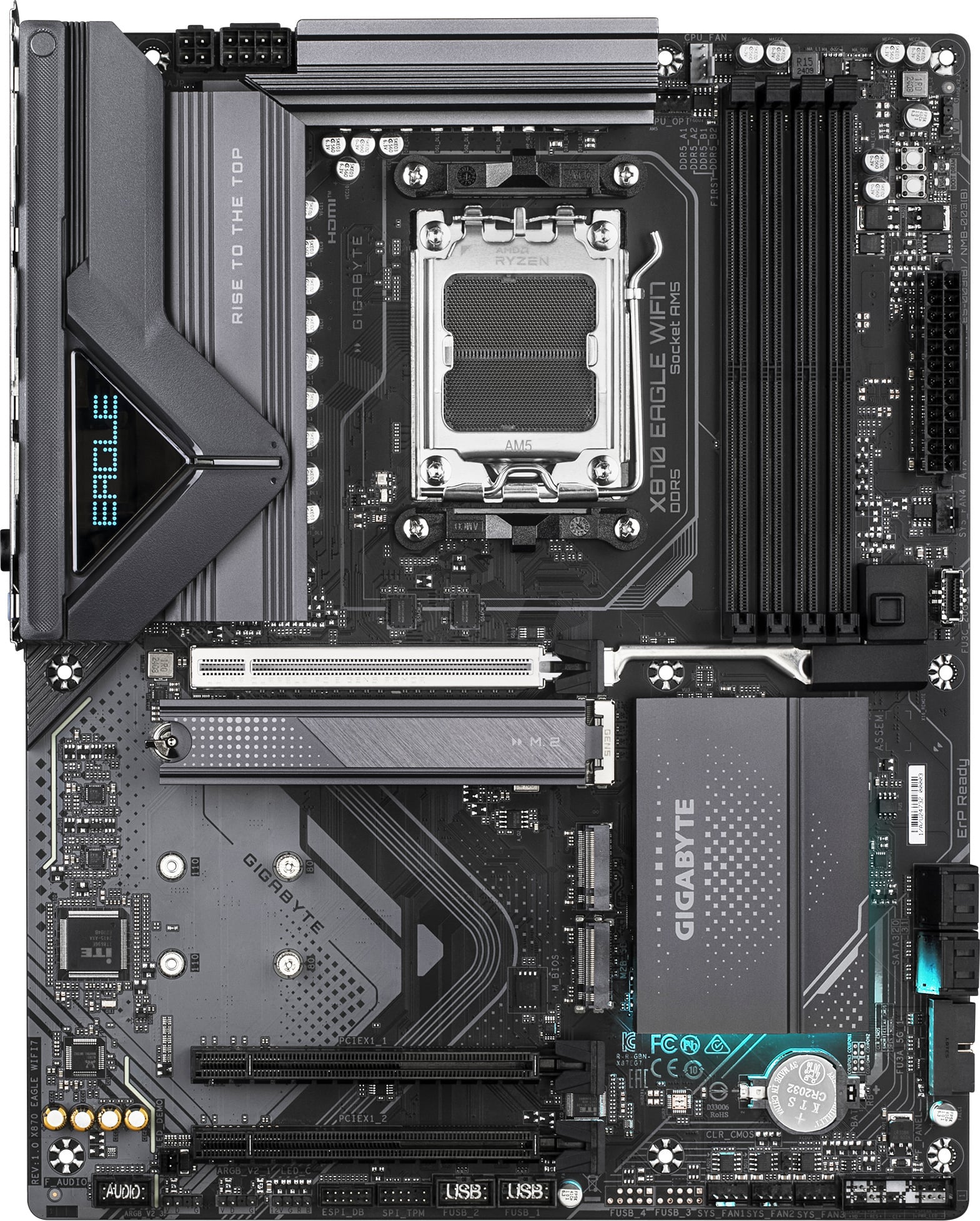

GIGABYTE X870 EAGLE WIFI7 ATX emaplaat (X870 EAGLE WIFI7)

Gigabyte X870 EAGLE WIFI7 is a high-quality and durable AM5-based ATX motherboard for 7000/8000/9000 series Ryzen CPUs.

X870 motherboards offer AI-PC features, upgraded power management, the latest storage standards and excellent connectivity for optimal gaming performance.

- AMD AM5-Core: Supports AMD Ryzen 9000/8000/7000 series processors.

- 14+2+2 stage power supply.

- Dual-channel DDR5: 4 x DIMM memory slots with AMD EXPO memory module support, 8200(OC) MB/s.

- Ultra-fast storage: 3 x M.2 x DDR5.

- High-speed network connectivity: 2.5GbE LAN and Wi-Fi 7 with directional ultra-high gain antenna.

- Extended connectivity: Two USB4 Type-C ports with DP-Alt Mode support, HDMI.

- User-friendly BIOS interface:Multiple themes, AIO fan management and Q-Flash auto-scanning in BIOS and software.

Features:

• Chipset: AMD X870
• Processor Core: AM5
• Processor Support: AMD Ryzen 7000 / 8000 / 9000 series
• Board Size: ATX (30.5 x 24.4 cm)
• Memory Slots (pcs): 4
• Memory Type: DDR5 (8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s), Dual Channel, non-ECC, un-buffered
• Memory maximum (GB): 256
• Network interfaces: Realtek 2.Realtek Realtek 5 Gigabit LAN, Wi-Fi 7, Bluetooth 5.4
• Wire Card: Realtek ALC1220 CODEC, High Definition Audio 2/4/5.1/7.1 channel

Expansion Slots:

• AMD Ryzen 9000 & 7000 series processors
  1 x PCIe 5.0 x16 mode
• AMD Ryzen 8000 Phoenix 1 series processors
  1 x PCIe 4.0 x8 mode
• AMD Ryzen 8000 Phoenix 2 series processors
  1 x PCIe 4.0 x4 mode
• AMD X870 Chipset


  2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Hard disk interfaces:

• 4 x SATA 6Gb/s ports
• 3 x M.2
  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280
  1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2
  1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2

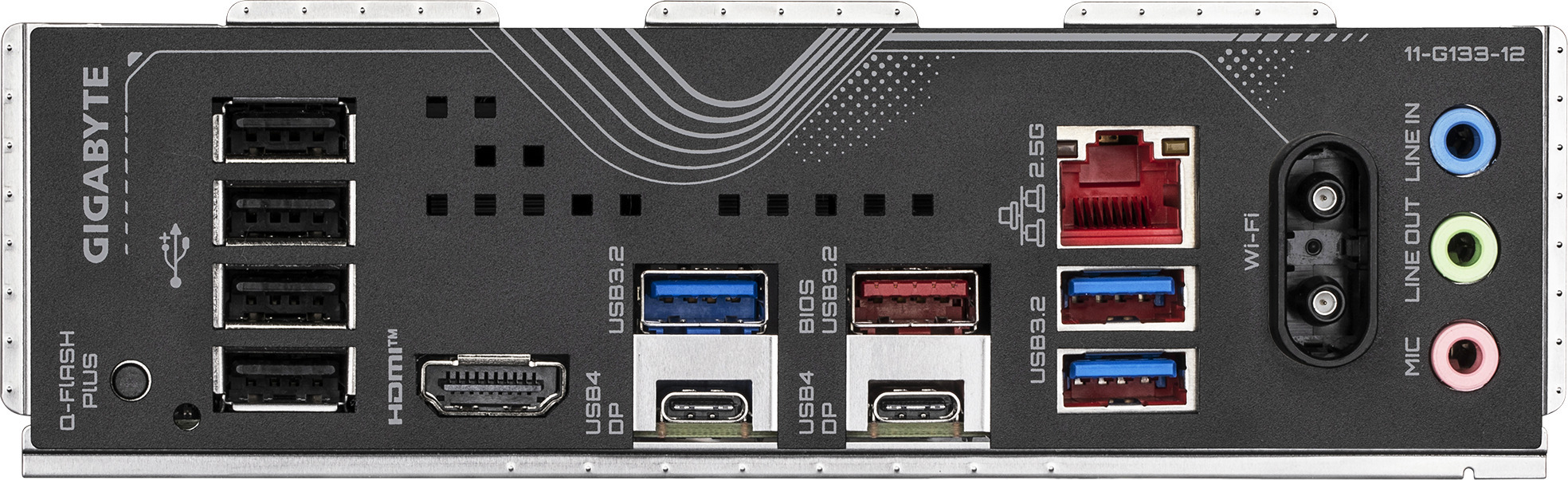

Rack Panel Connections

• 1 x Q-Flash Plus button
• 2 x antenna connectors (2T2R)
• 1 x HDMI port(Note)
• 2 x USB4 USB Type-C ports (DisplayPort*)
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 3 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks


Internal Connections

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x SATA 6Gb/s connectors
• 3 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x power button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper
