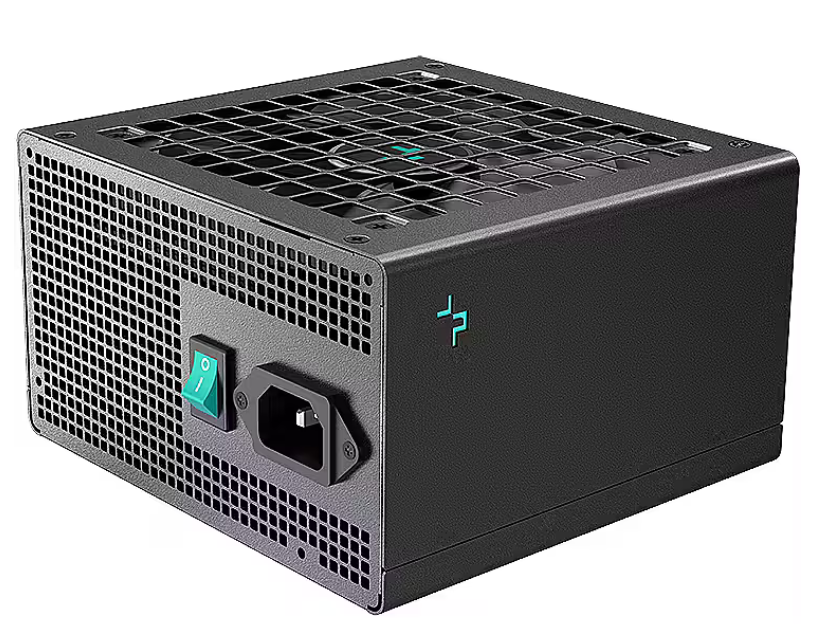

deepcool PN750M 750W Power Supply (R-PN750M-FC0B-JGEU)

Power Management
Total Power: 750 W
Efficiency: 90 %
Power Factor Correction (PFC) Type: Active
Hold-up Time: 16 ms
Power Protection Description: Under voltage, over voltage protection, surge & inrush protection (SIP), short circuit, overheating, overvoltage, overload, no load operation
Total Current (+3.3V): 110 W
Total Current (+12V): 750 W
Total Current (+5V): 110 W
Total Current (-12V): 3.6 W
Total Current (+5Vsb): 15 W
Maximum Output Current (+3.3V): 20 A
Maximum Output Current (+12V): 62.5 A
Maximum Output Current (+5V): 20 A
Maximum Output Current (-12V): 0.3 A
Maximum Output Current (+5Vsb): 3 A
Input Current: 10 - 5 A
Input Frequency: 50/60 Hz
Input Voltage: 100 - 240 V
Power Good Signal Delay Range: 100 - 150 µs

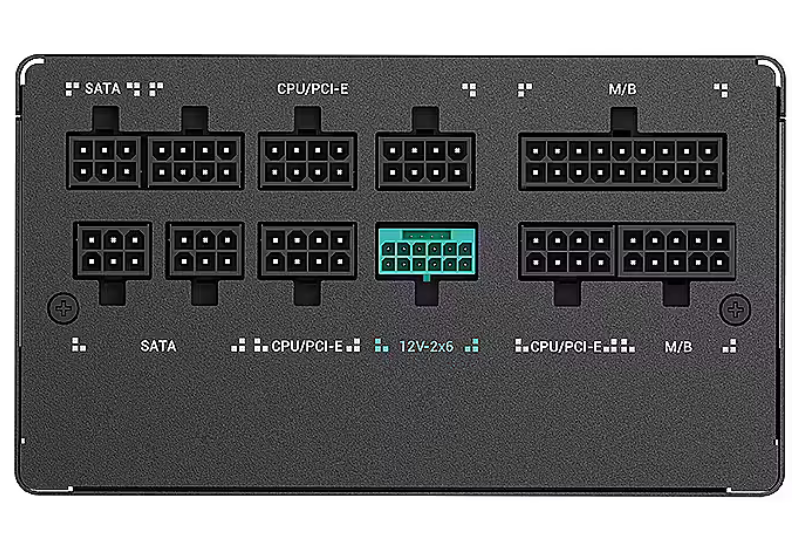

Connectivity
Motherboard Power Connector: 20+4 pin ATX
Number of SATA Power Connectors: 8
Peripheral (Molex) Power Connectors (4-pin): 2
ATX Power Connector (20 + 4 pin): Yes
CPU Power Connector (4 + 4 pin): Yes
PCI Express Power Connector (6+2 pins): 3
Cable Type: Fully modular
Motherboard Power Cable Length: 550 mm
SATA Power Cable Length: 450, 570, 690, 810 mm
CPU Power Cable Length: 700 mm
Peripheral (Molex) Power Cable Length: 930 mm
PCI Express Power Connectors (16 pins): 1

Performance
Purpose: PC (computer)
80 PLUS Certification: 80 PLUS Gold
Mean Time Between Failures (MTBF): 100000 h
Fan Shaft Type: FDB
ATX Version: 3.1
PSU Form Factor: ATX

Design
Fan Diameter: 120 mm
Number of Fans: 1 fan
Cooling Type: Active
Fan Position: Head
Integrated On/Off Switch: Yes
Product Color: Black

Certifications
Compliance Certifications: CCC, WEEE, RoHS, RCM, Federal Communications Commission, EAC, CE

Technical Details
Sustainability Certifications: ErP, Triman

Weight & Dimensions
Height: 86 mm
Width: 150 mm
Depth: 140 mm

Environmental Conditions
Operating Temperature Range (T-T): 0 - 40 °C

Package Information
Package Type: Box
Included Cables: SATA, Peripheral (Molex), PCIe, CPU, ACC
Cable Ties Included: Yes
