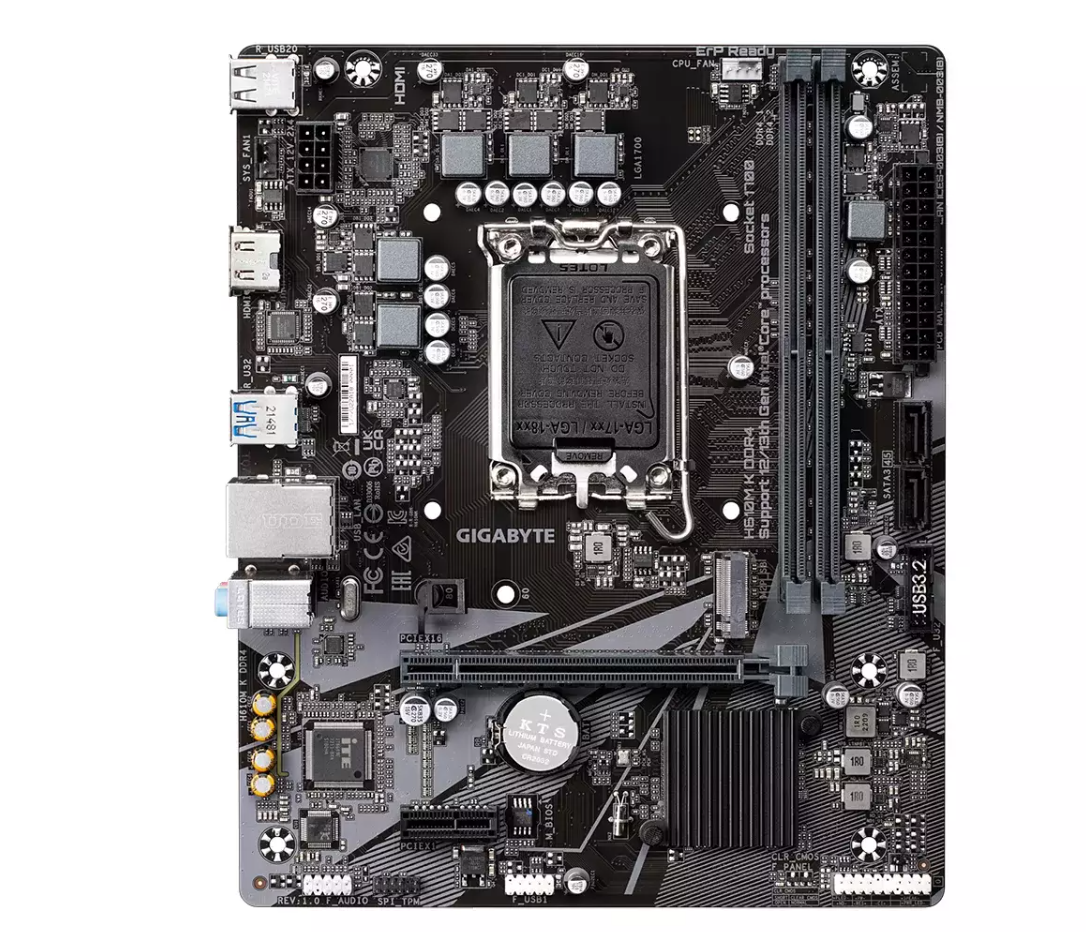

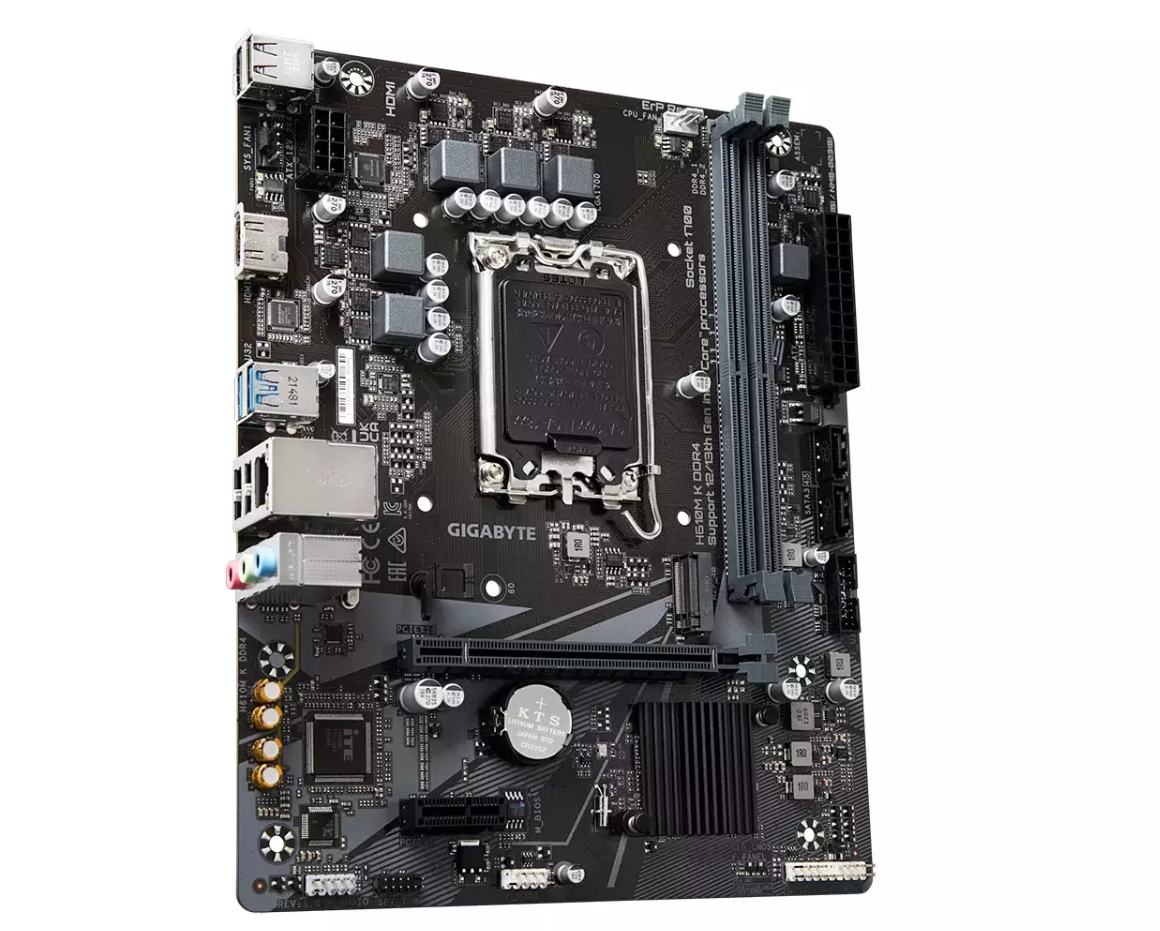

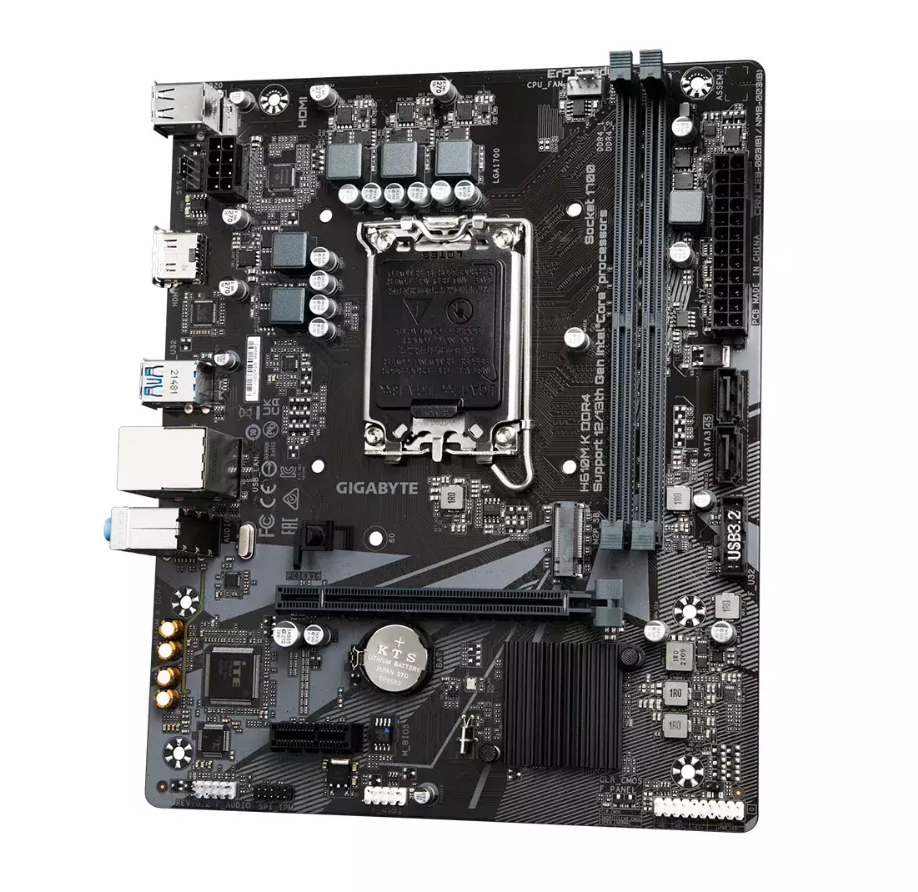

GIGABYTE H610M K DDR4 Motherboard / Intel H610 / Socket LGA 1700 / Micro ATX / PCIe 4.0 / M.2 NVMe
Product images are illustrative. The original product may vary, so please refer to the product specifications in the product description.
Price
€ 76.20The e-shop price may differ with shops price.
Points
+76
Delivery time and options
-
2-4 days -
2-4 days -
2-4 days -
2-4 days -
2-4 days
Product details
| EAN | 4719331851675 |
Product description
The Gigabyte H610M K DDR4 motherboard is designed for home, office, and budget gaming PCs using Intel 12th and 13th Gen processors (Alder Lake & Raptor Lake). The Micro ATX form factor fits compact cases and supports DDR4 memory up to 64GB at up to 3200 MHz, fast storage via M.2 NVMe, and graphics cards via PCIe 4.0 x16. It features USB ports, Gigabit LAN, high-quality 7.1 channel audio, and extensive fan control and protection functions.
Specifications:
Form factor: Micro ATX
Chipset: Intel H610
CPU socket: LGA 1700, Intel 12th & 13th Gen
Memory support: DDR4, dual-channel, up to 64GB, XMP 2666/3200 MHz
Expansion slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Storage: 1 x M.2 PCIe NVMe / SATA, 4 x SATA 6Gb/s
Networking: 1 x Gigabit LAN (Intel I219-V), Wake-on-LAN
Audio: Realtek ALC897, 7.1 channel, premium audio capacitors
USB ports: Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0; Internal: 1 x USB 3.2 Gen 1, 2 x USB 2.0
BIOS: UEFI with EZ Flash, Q-Flash, Dual BIOS
Power delivery: 6+2 phase digital VRM
Cooling: VRM heatsinks, support for 3 case fans, Smart Fan 5
RAID support: 0, 1, 5, 10
Protection features: overvoltage, short circuit, DRAM ESD
Intel Optane Memory and Intel UHD Graphics support
OS: Windows 10/11, Linux
Features: Smart Fan 5, HDCP, ECC memory support, C-states, SpeedStep, TPM 2.0
Case compatibility: Micro ATX
Dimensions: Length 0.244 m; Width 0.217 m; Height 0.035 m
Weight: 0.62 kg
Gross weight: 0.95 kg
