Minis Forum MINI PC MS-A2-9955 AMD Ryzen 9 9955HX barebone

MINI PC (Personal Computer) MS-A2-9955 AMD Ryzen 9 9955HX barebone
MINIS FORUM MS-A2-9955 is a barebone PC that combines a compact form factor with premium performance. It’s equipped with an AMD Ryzen™ 9 9955HX processor based on Zen 5 architecture, high-performance DDR5 memory, and an advanced cooling system, plus it offers a variety of ports and supports Wi-Fi 6E and Bluetooth 5.2. It's ideal for office work, multimedia, and more.

Ryzen 9 processor performance
At the heart of the MS-A2-9955 is the AMD Ryzen™ 9 9955HX processor based on Zen 5 architecture, a unit with 16 cores and 32 threads, clocked at up to 5.4 GHz and 64 MB of L3 cache. All this makes the computer perfect for the office or at home—it will even be suitable for power-hungry tasks.

Latest DDR5 memory
The computer supports up to 96 GB of DDR5 memory in dual-channel mode. DDR5-5600 modules guarantee significantly higher bandwidth, faster application loading, and smoother operation of multiple programs at once. This is a huge advantage in RAM-intensive tasks such as video editing and data analysis.

Ultra-fast and high-capacity drives
The MS-A2-9955 supports state-of-the-art M.2 NVMe and U.2 media with a total capacity of up to 15 TB, configurable as RAID 0 or RAID 1. High read and write speeds guarantee lightning-fast system startup, instant program launch, and reliable storage of large files.

Multi-screen support and Radeon graphics
The integrated AMD Radeon™ 610M chip and available ports allow you to connect three monitors simultaneously, including one at 8K resolution. This is ideal for multitaskers, from editors and graphic designers to users who require comfortable office work on multiple screens. And if you need additional capabilities, there’s a PCIe x16 slot for installing a dedicated graphics card.

Professional connectivity
The Mini PC is equipped with numerous connectors: on the front, you’ll find a 3.5mm Combo Jack port, two USB 3.2 Gen1 ports and a USB 2.0 port, while on the back there are two USB-C 3.2 Gen2 ports, an HDMI 2.1, LAN RJ45 2.5 GB (Realtek RTL8125), LAN RJ45 2.5 Gb (Intel I226-V), SFP+ 10G (Small Form-factor Pluggable Plus 10 Gigabit), USB 3.2 Gen2 and USB 3.2 Gen1. So you can freely connect peripherals, transfer files, access the Internet, and more. There’s also Wi-Fi 6E and Bluetooth 5.2 wireless connectivity.

Efficient cooling
The MS-A2-9955 uses triple copper heat pipes, a new fan with increased airflow, and a phase-change material that efficiently dissipates heat. As a result, the device maintains high performance and stable operation even under prolonged load.

Manufacturer: Minis Forum
Model: MS-A2-9955
CPU: AMD Ryzen™ 9 9955HX (Zen 5, 16 cores, 32 threads, 64 MB L3 Cache, clocked up to 5.4 GHz)
GPU: AMD Radeon™ 610M
Memory: Up to 96 GB DDR5 (SO-DIMM x2) - DDR5-5600
Storage: M.2 2280/U.2 NVMe SSD ×1 (up to 15 TB, PCIe 4.0 ×4), M.2 2280/22110 NVMe/SATA SSD ×2 (up to 4 TB per slot, PCIe 3.0 ×4 by default, option to expand to PCIe 4.0 ×4)
Wireless connectivity: Wi-Fi 6E, Bluetooth 5.2
Video outputs: HDMI ×1 (up to 8K@60Hz), USB-C ×2 (up to 8K@60Hz / 4K@144Hz)
Audio outputs: HDMI 1, USB-C ×2, Combo Jack 3.5mm ×1
Audio inputs: Combo Jack 3.5 mm ×1

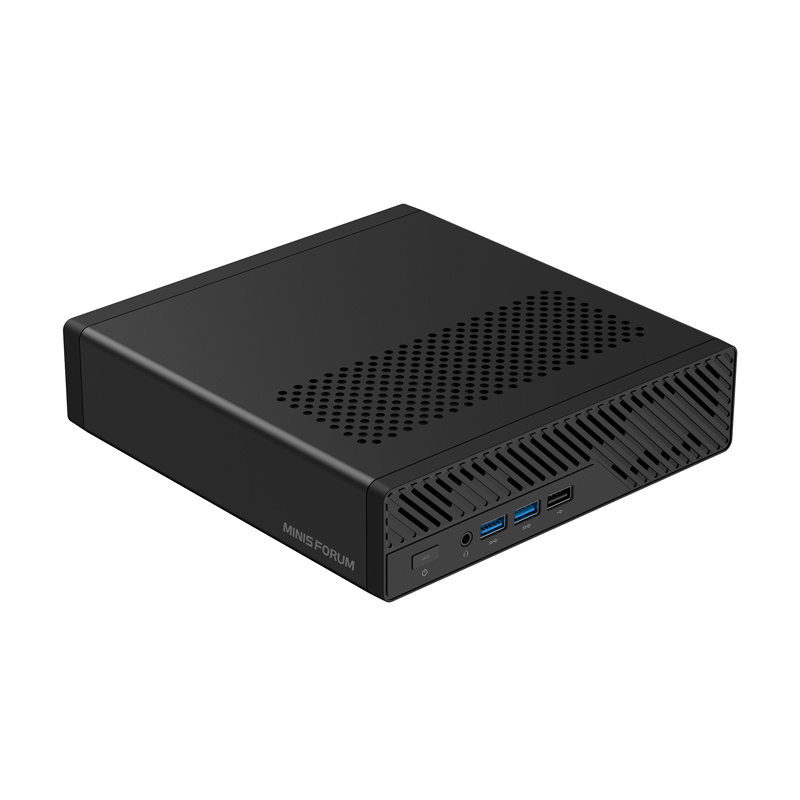

Front ports: 3.5 mm Combo Jack ×1, USB 3.2 Gen1 (up to 5 Gbps) ×2, USB 2.0 ×1

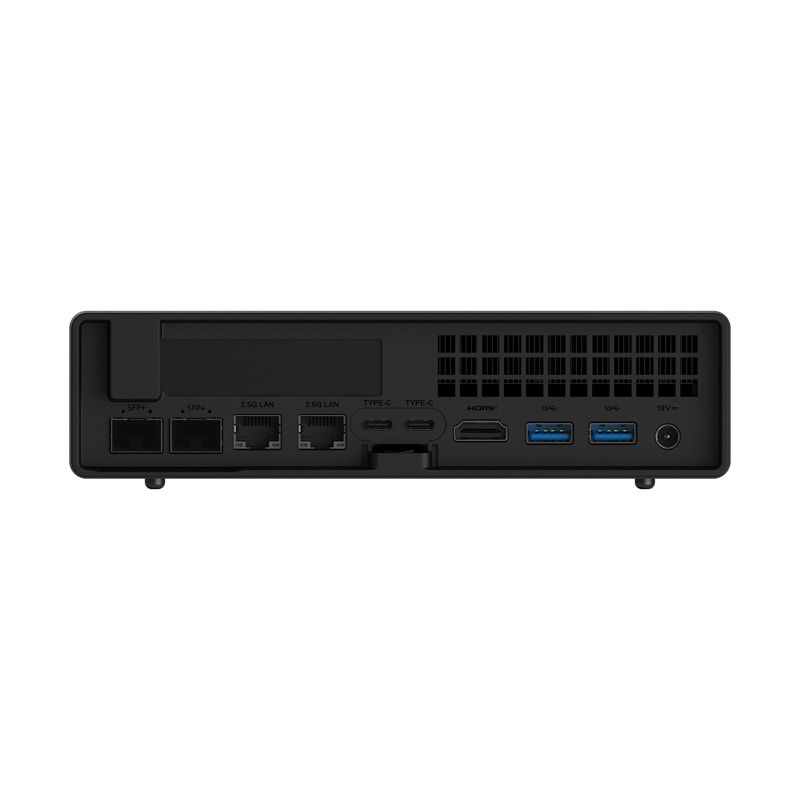

Rear ports: USB-C (USB 3.2 Gen2, 10 Gbps, Alt DP 2.0) ×2, HDMI 2.1 ×1, LAN 2.5 Gb (RJ45, Realtek RTL8125) ×1, LAN 2.5 Gb (RJ45, Intel i226-V) ×1, SFP+ 10 Gb (Intel X710) ×2, USB 3.2 Gen2 (10 Gbps) ×1, USB 3.2 Gen1 (5 Gbps) ×1
PCIe expansions: PCIe x16 (PCIe 4.0 ×8, splitting support)
Buttons: Power, Reset
Power supply: 19 V / 12.63 A
Operating system: Windows 11
Dimensions: 196 × 189 × 48 mm
