QuWireless QuMax Omni TRB500 võrgukantant Omni-suunaline antenn PoE/LAN 4 dBi (A500MO)

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + PLACE TO INSTALL TELTONIKA TRB500 (ALL-IN-ONE)

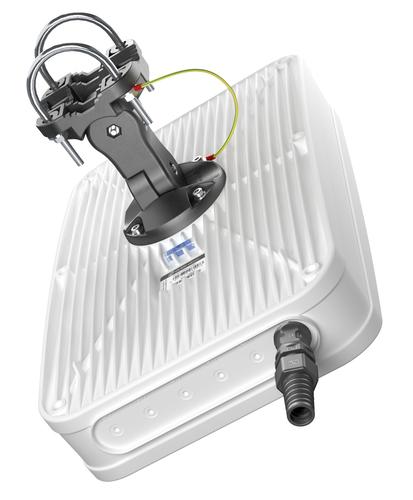

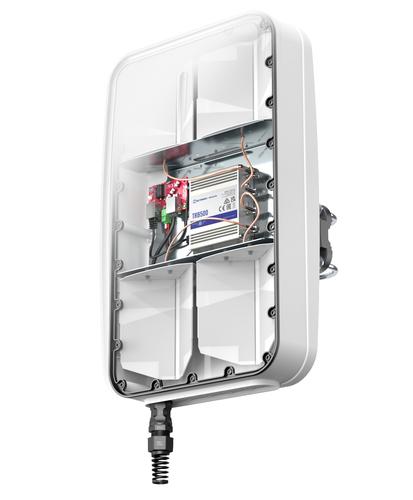

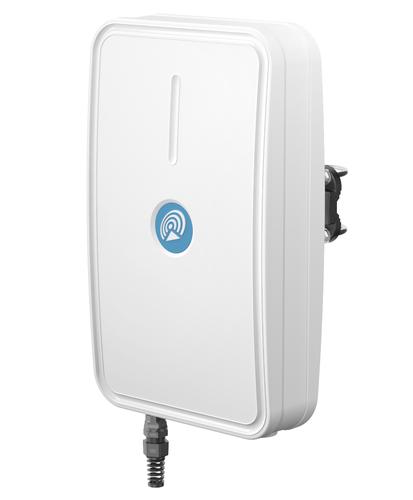

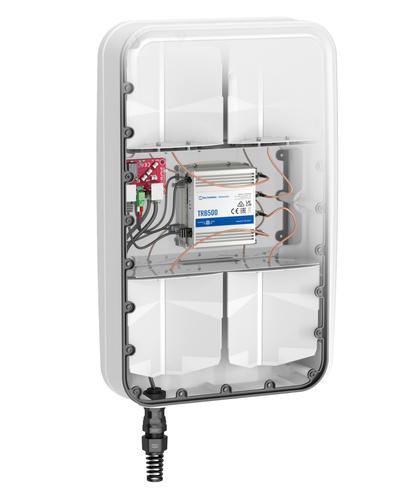

QuMax Omni is a 5G omnidirectional MIMO 4x4 antenna for the Teltonika TRB500 gateway. The antenna covers a wide frequency range from 617MHz (Band71) to 3.8GHz. Additional router compartment inside the housing creates a variety of new outdoor (IP67) scenarios. It is recommended for moving applications, like trains, buses, yachts or campers, but also to improve signal quality in rural areas.

The set contains a PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

NOTE! The antenna doesn’t support B32 band and n77 (above 3800MHz) band!QuWireless QuMax Omni for TRB500. Antenna gain level (max): 4 dBi, Frequency band: 0.617-0.96/1.7-2.2/2.2-2.7/3.3–3.8, Gain: 3 / 4 dBi. Antenna type: Omni-directional antenna, Antenna connector type: PoE/LAN, Polarization: Vertical polarization. Width: 292.2 mm, Depth: 105.6 mm, Height: 486 mm. Quantity per pack: 1 pc(s)
