Shelly 1 Gen3 releeklapi Wi-Fi jaoks (_1_Gen3) (Shelly_1_Gen3)

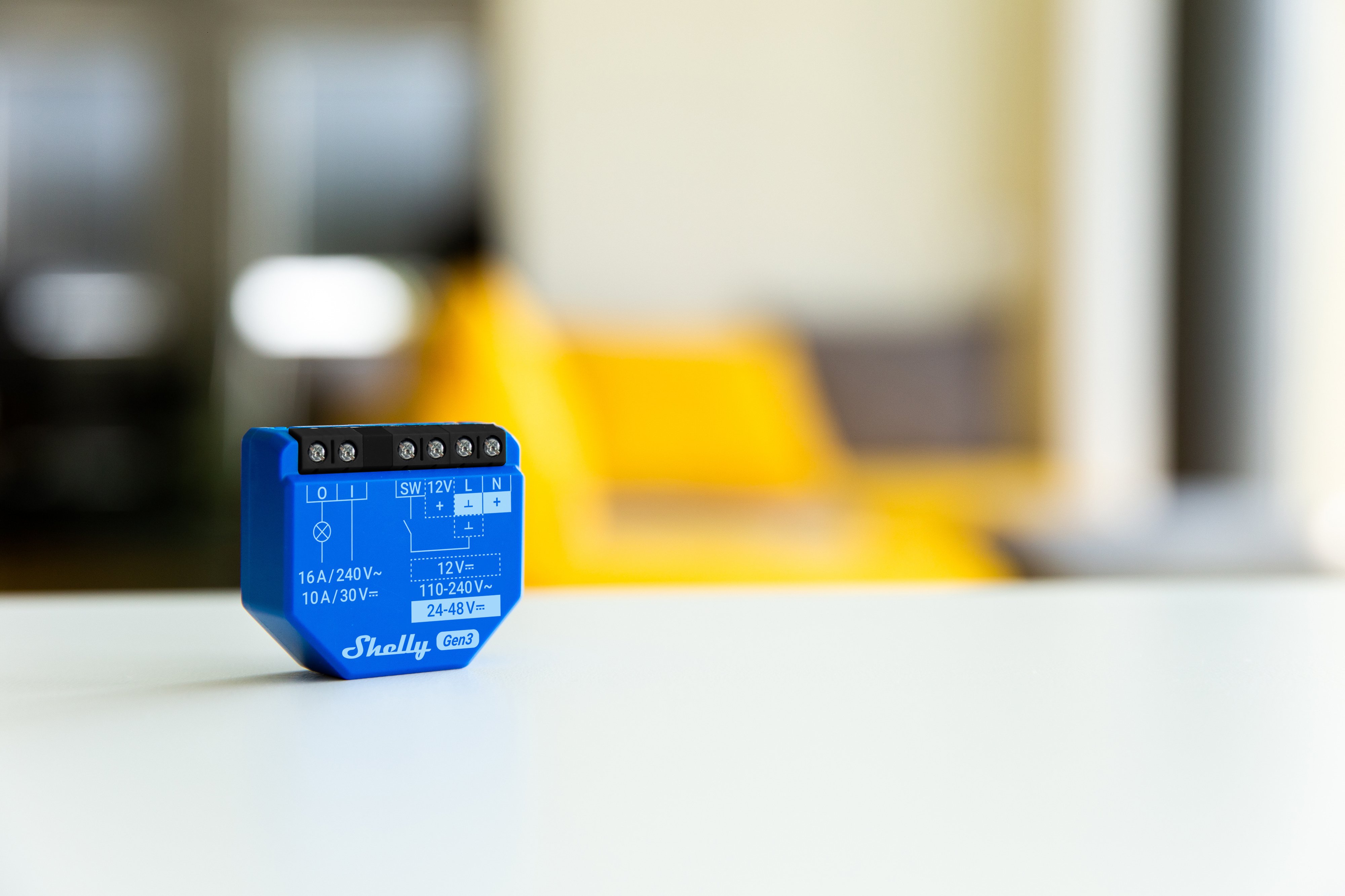

Shelly 1 Gen3 is a potential-free relay switch for Wi-Fi. The relay switch can be used to control a wide range of products at any time and from anywhere. Shelly's relay switch turns your product into a smart one.

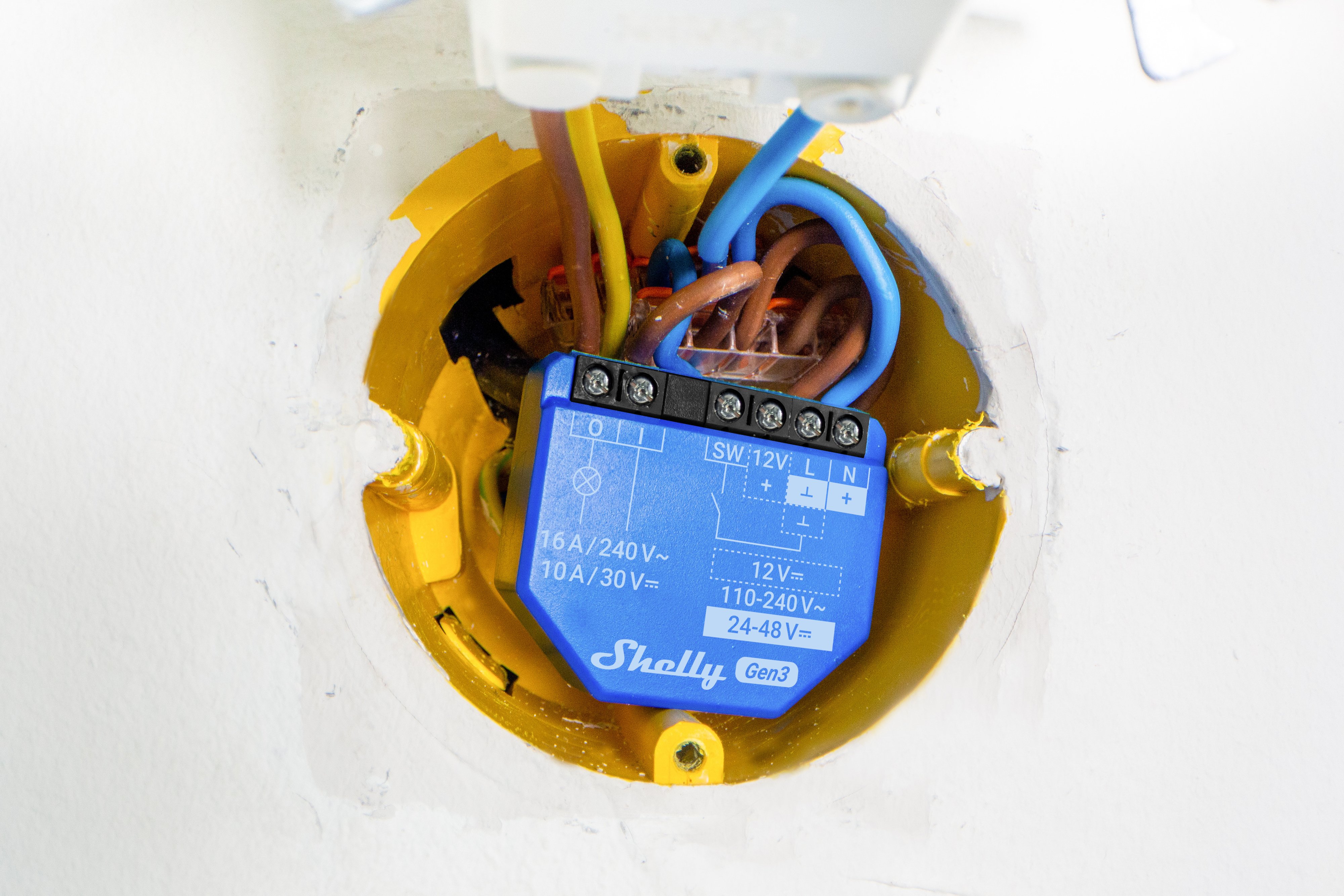

Shelly 1 Gen3 is a compact relay switch designed to fit most electrical appliances and switches. Connecting to a wireless network, the Shelly 1 Gen3 can be used to control things like lighting, curtains, heating or even air conditioning.

Shelly smart home products support Amazon Alexa and Google Assistant virtual assistants. In addition to the above, several other smart home systems/platforms are also supported (check product specific for compatibility). Shelly's products connect to a wireless Wi-Fi network and do not require a separate home automation controller to function.

Note, installation should only be performed by an authorized electrician.

Features:

• Dry contacts (potential free) - possibility of contactor control

• New ESP-Shelly-C38F processor with 8 MB memory
• Provided connector durability
• High security
• Wi-Fi transceiver and Bluetooth interface
• Supports scripting, webhooks, MQTT, WebSocket, HTTPS:UDP, TLS and custom certificates
• Does not require a hub - Easy control with Shelly Smart Control app, various home automation protocols and platforms, and voice controls
• Bluetooth support
• Amazon Alexa, Google Assistant support
• Shelly Cloud app - Android and iOS support

Specifications:

• Model: Shelly 1 Gen3
• Nominal voltage: AC: 110 - 240 V, DC: 24 - 48 V / 12 V
• Power consumption: < 1.2 W
• Number of channels: 1
• Maximum switching voltage: 240 V AC / 30 V DC
• Maximum load: 16 A (240 V AC) / 10 A (30 V DC)
• Power consumption measurement: no
• Without neutral wire: no
• Overload protection: no
• Overheating protection: yes
• Wifi standard: Wifi 802.11 b/g/n, 2.4 GHz
• Wifi operating frequency: 2401 - 2483 MHz
• Wifi transmission power: < 20 dBm

• Wifi range: 50 m outdoor, 30 m indoor
• Bluetooth standard: 4.2
• Bluetooth operating frequency: 2400 - 2483.5 MHz
• Bluetooth transmission power: < 4 dBm
• Bluetooth range: 30 m outdoor, 10 m indoor
• Processor: ESP-Shelly-C38F
• Memory: 8 MB
• Operating temperature: -20 ºC ... +40 ºC

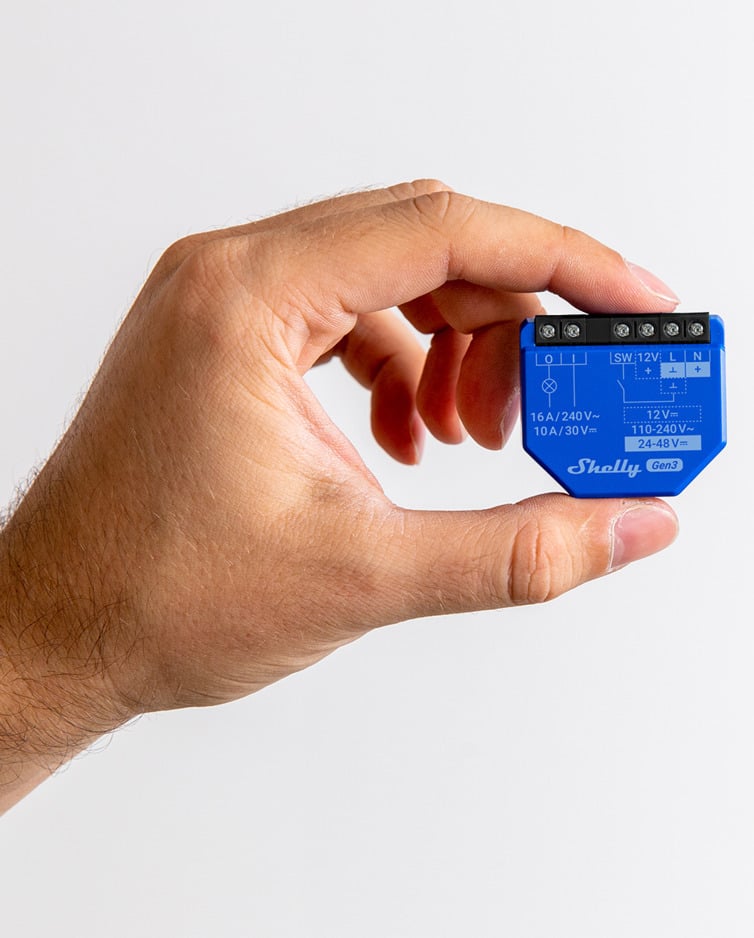

• Dimensions: 42 x 37 x 16 mm
• Weight: 26 g
