Noctua NF-A8 PWM Cooling system
Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
Hind
€ 28.60Veebipoe hind võib erineda esinduse kohapealsest hinnast.
Punktid
+28
Tarneviis ja tarneaeg
-
6-8 päeva -
6-8 päeva -
6-8 päeva -
6-8 päeva -
6-8 päeva
Toote andmed
| Tootekood | NF-A8 PWM |
| EAN | 4716123315476 |
Tootekirjeldus

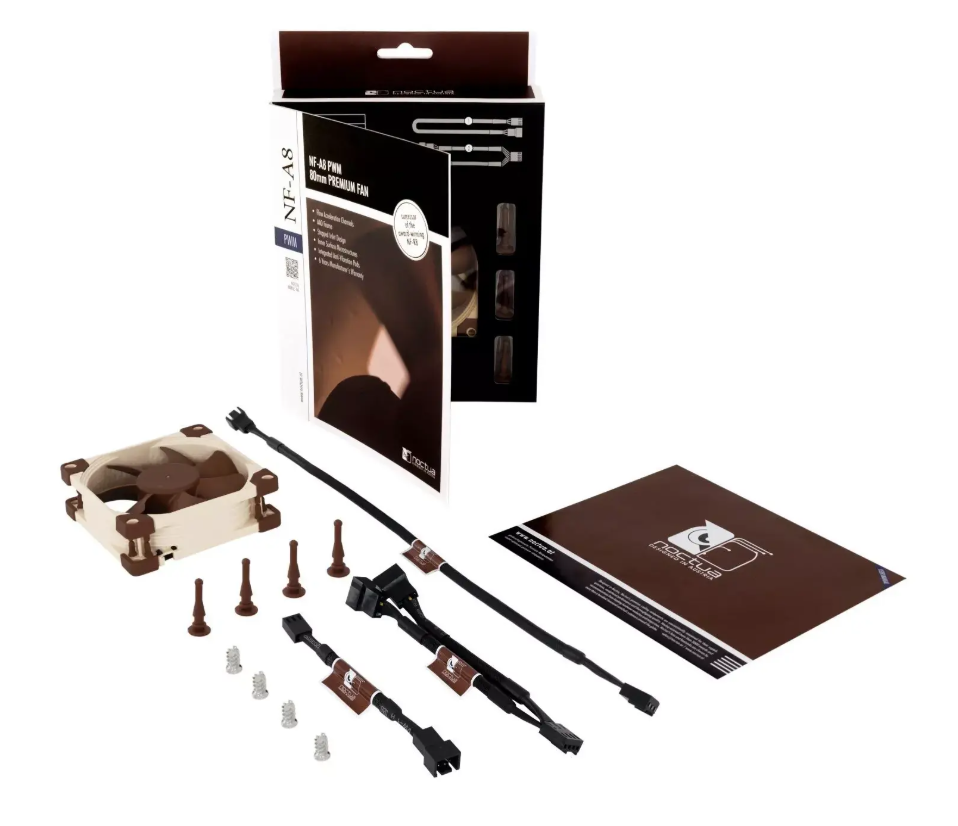

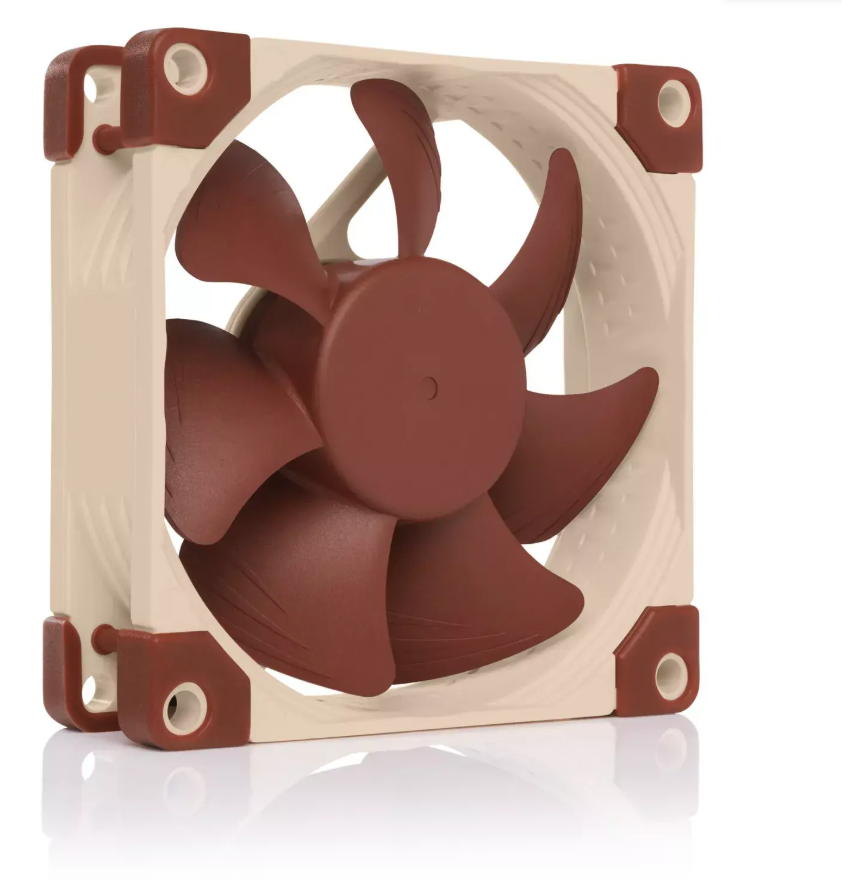

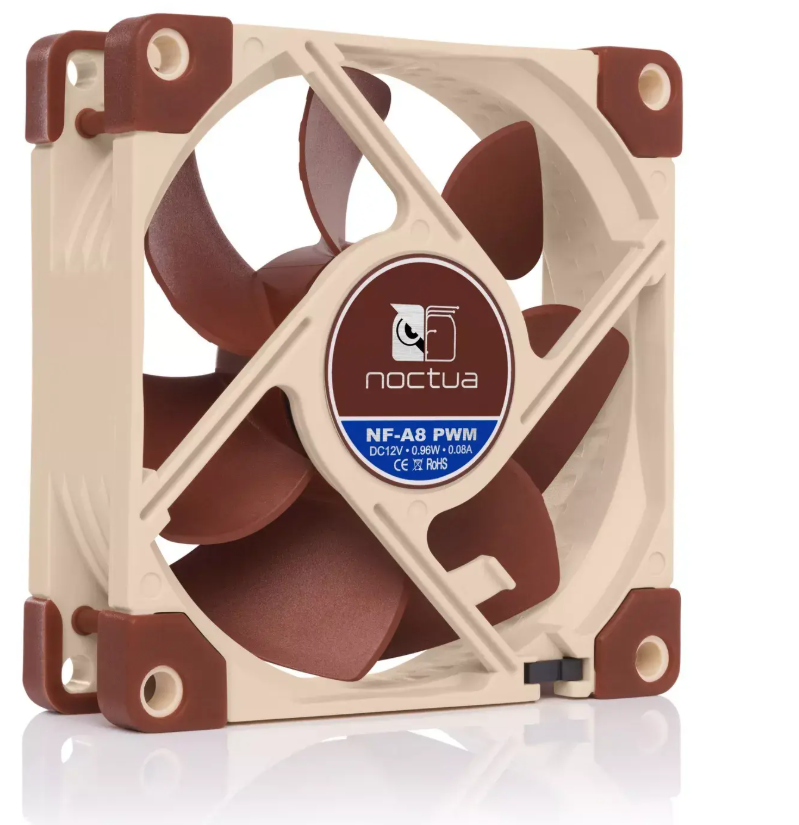

The Noctua NF‑A8 PWM is a premium-grade, ultra-quiet 80 mm fan featuring an AAO (Advanced Acoustic Optimisation) frame with integrated anti-vibration pads, stepped inlet, and inner-surface microstructures. It uses a long-lasting SSO2 bearing and NE‑FD1 PWM IC with Smooth Commutation Drive (SCD) technology for whisper-quiet operation at low speeds. The package includes a Low-Noise-Adaptor (reduces max RPM to 1750 ±10 %), a Y-cable, a 30 cm extension, vibration dampers, and screws. With an MTBF of over 150,000 hours it’s built for longevity. Specifications Fan dimensions: 80×80×25 mm Mounting hole spacing: 71.5×71.5 mm Max speed: 2200 RPM (±10 %) Min speed at 20% PWM: 450 RPM (±20 %) Airflow: 55.5 m³/h (L.N.A.: 43.9 m³/h) Noise level: 17.7 dB(A) (L.N.A.: 13.8 dB(A)) Static pressure: 2.37 mm H₂O (L.N.A.: 1.54 mm H₂O) Operating voltage: 12 V Power consumption: 0.75 W typical, 0.96 W max; current: 0.06 A / max 0.08 A Bearing: SSO2 Cables: 20 cm primary + 30 cm extension, 4‑pin PWM + Y‑cable
