GIGABYTE B850 Elite WF7 emaplaat AMD AM5 / B850 / DDR5 4×DIMM / ATX / Wi-Fi 7 / 2,5 GbE (B850AELITEWF7)

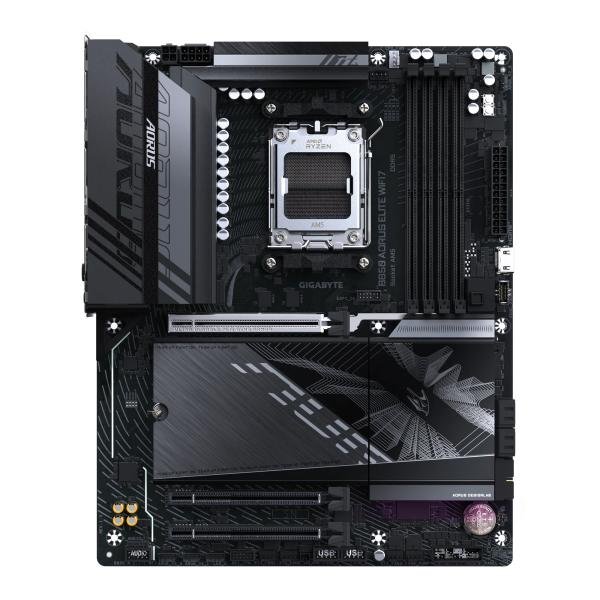

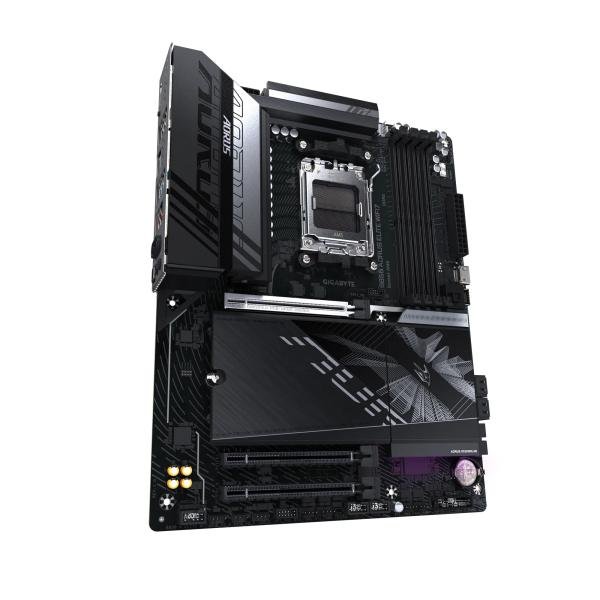

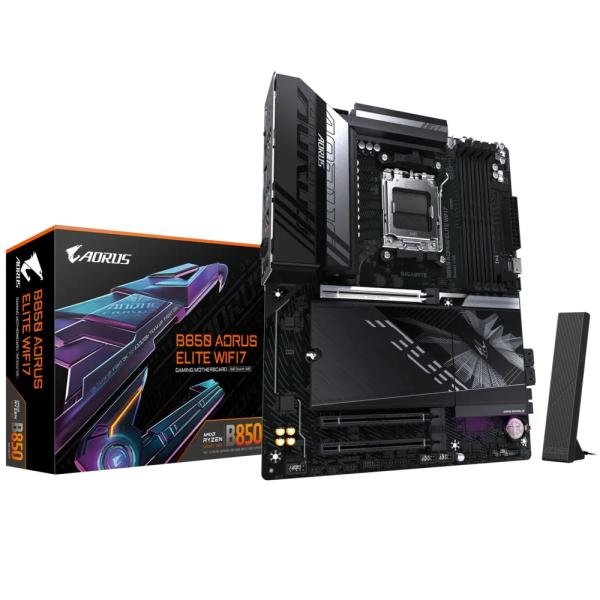

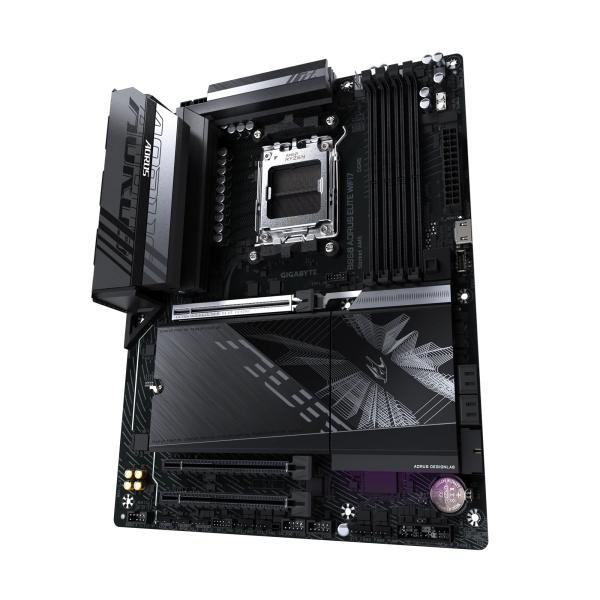

The Gigabyte B850 A Elite WF7 motherboard is built for AMD Ryzen processors using the AM5 socket and features the new B850 chipset. It supports high-speed DDR5 memory, reinforced PCIe slots, PCIe 5.0 M.2 storage and modern connectivity including 2.5 GbE and Wi-Fi 7. Large VRM heatsinks ensure stable operation under heavy workloads. The ATX form factor provides extensive expandability for gaming and workstation builds. SpecificationsModel: Gigabyte B850 A Elite WF7Device type: MotherboardCPU socket: AMD AM5Chipset: AMD B850Form factor: ATX MemoryType: DDR5Slots: 4× DIMMChannel: Dual ChannelMax capacity: 192 GBSupported speeds: up to 8200 MT/s (OC)Profiles: AMD EXPO / XMP Expansion1× PCIe 5.0 x161× PCIe 4.0 x16 (x4 electrical)1× PCIe 3.0 x1 Storage3× M.2 (1× PCIe 5.0 x4, 2× PCIe 4.0 x4)4× SATA 6 Gb/sRAID 0 / 1 / 10 Networking & wirelessLAN: 2.5 GbEWi-Fi: Wi-Fi 7Bluetooth: supported AudioHD AudioStandard 3.5 mm jacks Rear I/OUSB Type-CUSB 3.2 Gen2USB 3.2 Gen1USB 2.0HDMIRJ-45Audio jacks Cooling & designLarge VRM heatsinksM.2 heatsinksFan headers: CPU_FAN, PUMP, SYS_FANReinforced PCIe slots Other featuresBIOS update without CPUTPM supportWindows 11 support Board dimensions: 30.5 cm × 24.4 cm Physical parametersWeight: 1.20 kgGross weight: 2.05 kgPackage dimensionsLength, m: 0.3300Height, m: 0.2800Width, m: 0.0700
