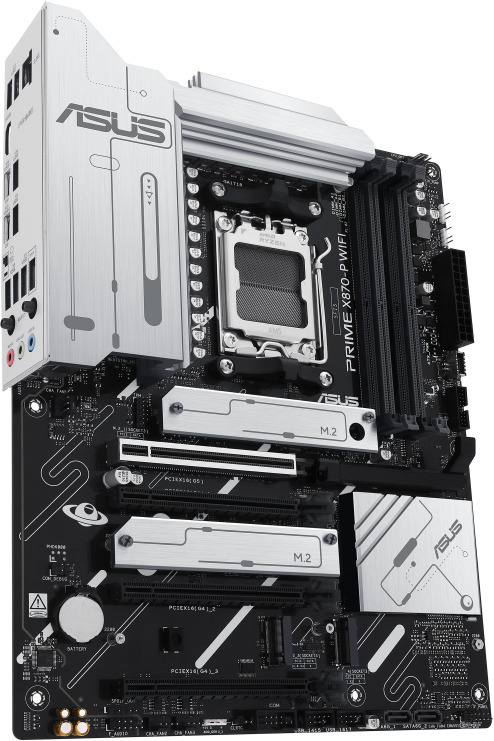

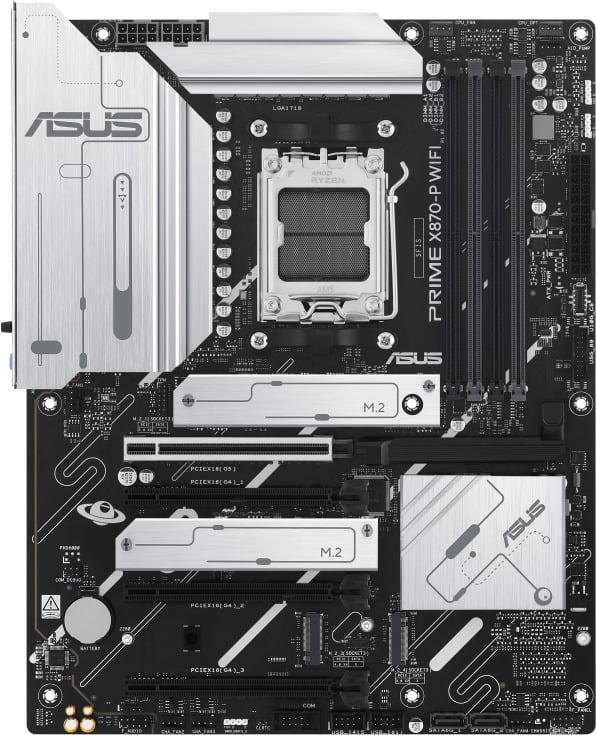

ASUS PRIME X870-P WIFI ATX emaplaat (90MB1IS0-M0EAY0)

ASUS Prime series motherboards are designed to maximize the performance of AMD Ryzen 9000 series processors. The PRIME X870-P WIFI motherboard combines robust power supply, efficient cooling and intelligent tuning features, offering a wide range of performance optimization options with easy-to-use tools. The motherboard is optimized for advanced AI applications, providing the power and connectivity needed for the most demanding AI applications.

14+2+1 power stages ensure smooth and efficient power distribution, especially for overclocking.

AI Networking II and AI Overclocking make performance optimization easy, offering automatic tuning and real-time performance fine-tuning.

AI Cooling II and one-button fan control ensure quiet and optimized cooling with a single click, keeping the system cool even under heavy load.

DDR5 memory support allows up to 192GB of memory to be installed on the motherboard and AEMP profiles help unlock the full potential of memory.

PCIe Gen 5 support provides maximum storage speed and hardware expansion capabilities.

WIFI 7 ensures lightning-fast wireless connectivity.

USB4 interfaces provide the latest generation of data transfer speeds.

Features:

• Chipset: AMD X870
• Processor Core: AM5
• Processor Support: AMD Ryzen 7000 / 8000 / 9000 series
• Board Size: ATX (30.5 cm x 24.4 cm)
• Memory Slots (pcs): 4
• Memory type: DDR5 (8000+ MT/s (overclocked) on Ryzen 9000, 8000 and 7000 series processors), ECC, Non-ECC, Un-buffered, Dual Channel
• Memory maximum(GB): 192
• Network interfaces: 1 x Realtek 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4
• Core card: Realtek 7.1 Surround Sound High Definition Audio CODEC

Slots:

• AMD Ryzen 9000 & 7000 series processors
  1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen 8000 series processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD X870E Chipset
  3 x PCIe 4.0 x16 slot (supports x4 mode)

Hard disk interfaces:

• 2 x SATA 6Gb/s ports
• AMD Ryzen 9000 & 7000 series processors
  M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• AMD Ryzen 8000 series processors
  M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• AMD X870 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)

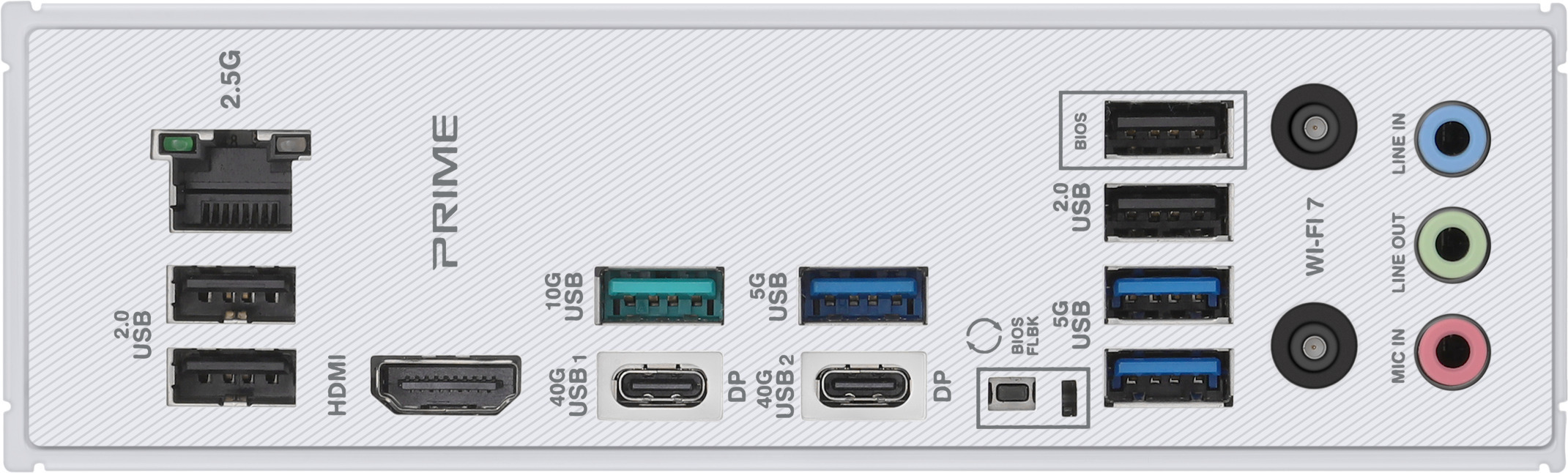

Backplane interfaces:

• 2 x USB4 (40Gbps) ports (2 x USB Type-C)
• 1 x USB 10Gbps port (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack button


Internal connections:

• Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
• Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
• Storage related
  4 x M.2 slots (Key M)
  2 x SATA 6Gb/s ports
• USB
  1 x USB 10Gbps connector (supports USB Type-C)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1 pin)
  1 x 10-1 pin System Panel header
